SKU: LFTC25EC-RHP

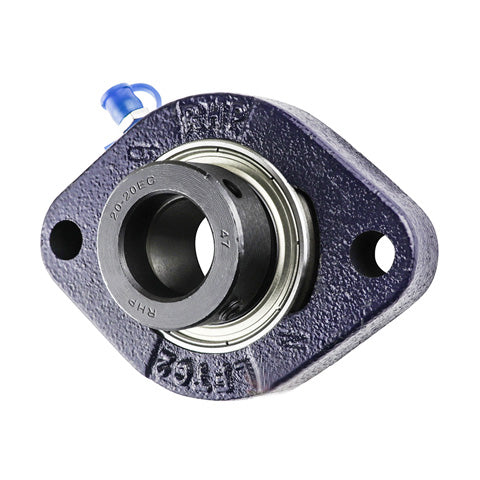

RHP LFTC25EC Two Bolt Oval Cast Iron Flange Housing Bearing 25mm Bore
RHP LFTC25EC Two Bolt Oval Cast Iron Flange Housing Bearing 25mm Bore
Regular price
€46,67
ex VAT
Regular price
Sale price
€46,67
ex VAT
In stock
Price Break
10+
€35,47
20+
€33,48
30+
€33,08
40+
€32,68
50+
€32,28
75+
€31,88
100+
€29,89
200+
€29,49
250+
€29,09
500+
€28,69
1000+
€27,90
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP LFTC EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- LFTC
- Bolt Hole Centres:
- 76mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 71mm |
| H | 96mm |
| J | 76mm |
| G | 8mm |
| A | 17.5mm |
| A2 | 32.82mm |
| B2 | 30.92mm |
| s1 | 7.56mm |
| d2 | 38.1mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-25ECG+insonly">1225-25ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
