SKU: LFTC25DEC-RHP

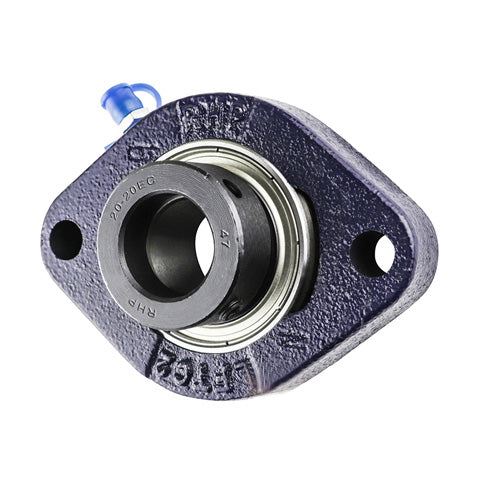

RHP LFTC25DEC Two Bolt Oval Cast Iron Flange Housing Bearing 25mm Bore
RHP LFTC25DEC Two Bolt Oval Cast Iron Flange Housing Bearing 25mm Bore
Regular price
€50,52
ex VAT
Regular price
Sale price
€50,52
ex VAT
In stock
Price Break
10+
€38,39
20+
€36,23
30+
€35,80
40+
€35,37
50+
€34,94
75+
€34,51
100+
€32,35
200+
€31,92
250+
€31,49
500+
€31,06
1000+
€30,20
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP LFTC DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- LFTC
- Bolt Hole Centres:
- 76mm
Technical

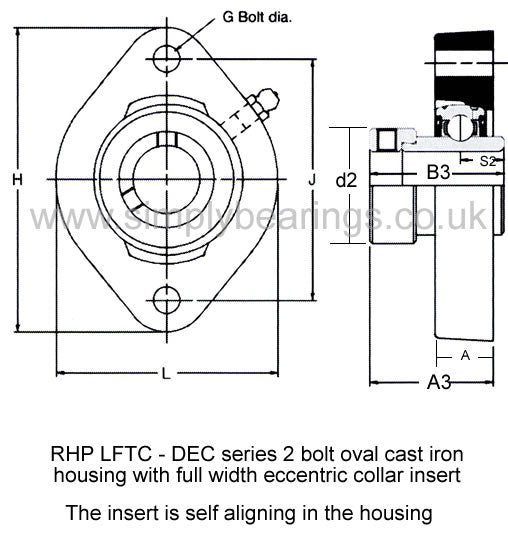

Technical
| Bore | 25mm |
|---|---|
| L | 71mm |
| H | 96mm |
| J | 76mm |
| G | 8mm |
| A | 17.5mm |
| A3 | 36.35mm |
| B3 | 44.4mm |
| s2 | 17.49mm |
| d2 | 38.1mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-25DECG+insonly">1025-25DECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
