SKU: LFTC20EC-RHP

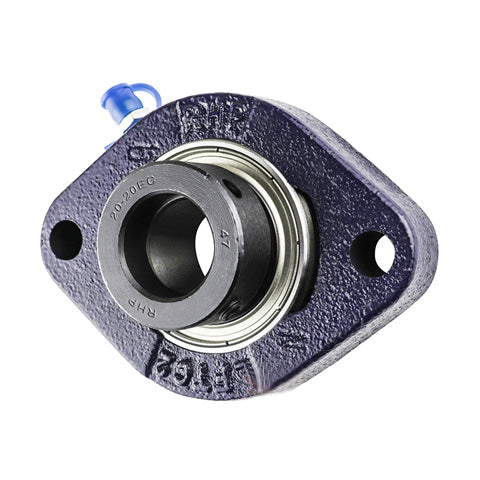

RHP LFTC20EC Two Bolt Oval Cast Iron Flange Housing Bearing 20mm Bore
RHP LFTC20EC Two Bolt Oval Cast Iron Flange Housing Bearing 20mm Bore
Regular price
€40,83
ex VAT
Regular price
Sale price
€40,83
ex VAT
In stock
Price Break
10+
€31,02
20+
€29,28
30+
€28,93
40+
€28,58
50+
€28,23
75+
€27,89
100+
€26,14
200+
€25,79
250+
€25,45
500+
€25,10
1000+
€24,40
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP LFTC EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- LFTC
- Bolt Hole Centres:
- 71.5mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 66.5mm |
| H | 90.5mm |
| J | 71.5mm |
| G | 8mm |
| A | 17mm |
| A2 | 32.92mm |
| B2 | 30.92mm |
| s1 | 7.56mm |
| d2 | 33.3mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-20ECG+insonly">1220-20ECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
