SKU: LFTC20A-RHP

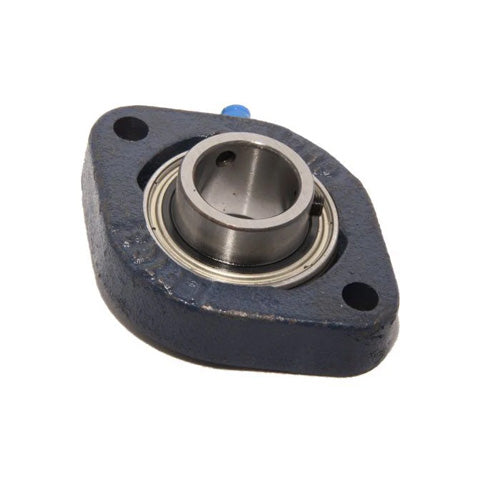

RHP LFTC20A Two Bolt Oval Cast Iron Flange Housing Bearing 20mm Bore
RHP LFTC20A Two Bolt Oval Cast Iron Flange Housing Bearing 20mm Bore
Regular price
€39,95
ex VAT
Regular price
Sale price
€39,95
ex VAT
In stock
Price Break
10+
€30,36
20+
€28,65
30+
€28,31
40+
€27,97
50+
€27,63
75+
€27,29
100+
€25,58
200+
€25,24
250+
€24,90
500+
€24,56
1000+
€23,88
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP LFTC A Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- LFTC
- Bolt Hole Centres:
- 71.5mm

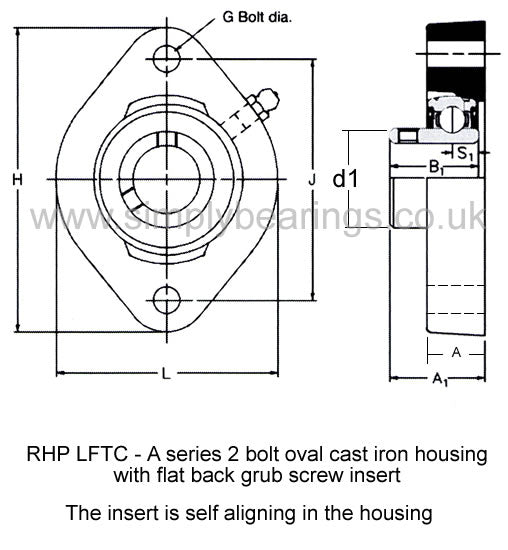

Technical
Technical
| Bore | 20mm |
|---|---|
| L | 66.5mm |
| H | 90.5mm |
| J | 71.5mm |
| G | 8mm |
| A | 17mm |
| A1 | 27.76mm |
| B1 | 25.77mm |
| s1 | 7.56mm |
| d1 | 28.5mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-20AG+insonly">1220-20AG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
