SKU: LFTC12EC-RHP

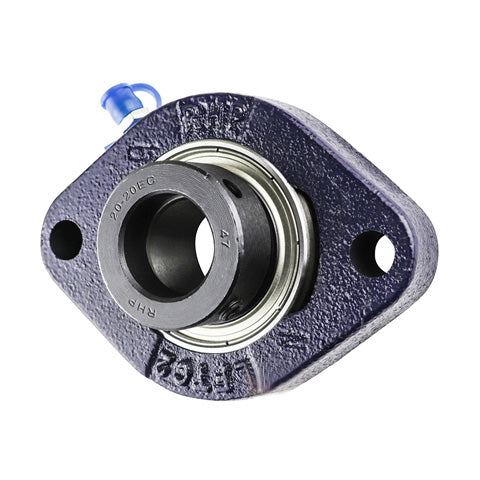

RHP LFTC12EC Two Bolt Oval Cast Iron Flange Housing Bearing 12mm Bore
RHP LFTC12EC Two Bolt Oval Cast Iron Flange Housing Bearing 12mm Bore
Regular price
€38,52
ex VAT
Regular price
Sale price
€38,52
ex VAT
In stock
Price Break
10+
€29,28
20+
€27,63
30+
€27,30
40+
€26,97
50+
€26,64
75+
€26,31
100+
€24,67
200+
€24,34
250+
€24,01
500+
€23,68
1000+
€23,03
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP LFTC EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 12mm
- Style:
- LFTC
- Bolt Hole Centres:
- 63.5mm
Technical
Technical

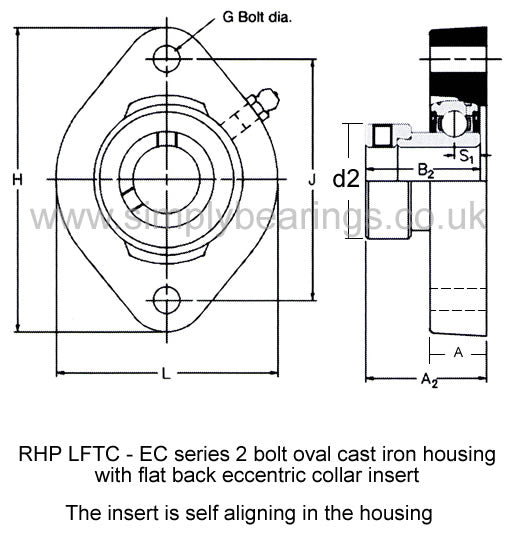

| Bore | 12mm |
|---|---|
| L | 58.5mm |
| H | 81mm |
| J | 63.5mm |
| G | 6mm |
| A | 15mm |
| A2 | 30.43mm |
| B2 | 28.54mm |
| s1 | 6.55mm |
| d2 | 28.58mm |
| Dynamic load | 9550 N |
| Static load | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1217-12ECG+insonly">1217-12ECG Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
