SKU: LFTC12-RHP

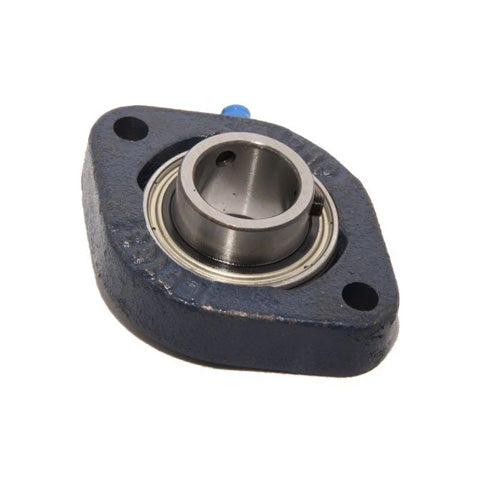

RHP LFTC12 Two Bolt Oval Cast Iron Flange Housing Bearing 12mm Bore
RHP LFTC12 Two Bolt Oval Cast Iron Flange Housing Bearing 12mm Bore
Regular price
€37,51
ex VAT
Regular price
Sale price
€37,51
ex VAT
In stock
Price Break
10+
€28,50
20+
€26,90
30+
€26,58
40+
€26,26
50+
€25,94
75+
€25,62
100+
€24,02
200+
€23,70
250+
€23,38
500+
€23,06
1000+
€22,42
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 12mm
- Style:
- LFTC
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| Bore | 12mm |
|---|---|
| L | 58.5mm |
| H | 81mm |
| J | 63.5mm |
| G | 6mm |
| A | 15mm |
| A1 | 24.27mm |
| B | 27.38mm |
| s | 11.55mm |
| d1 | 24.21mm |
| Dynamic load | 9550 N |
| Static load | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-12G+insonly">1017-12G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
