SKU: LFTC1.3/8-RHP

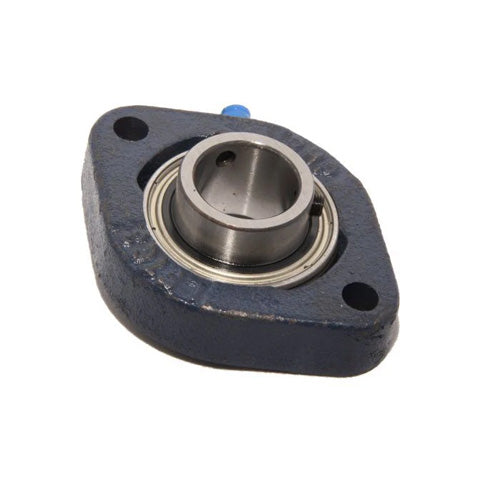

RHP LFTC1-3/8 Two Bolt Oval Cast Iron Flange Housing Bearing 1-3/8 inch Bore
RHP LFTC1-3/8 Two Bolt Oval Cast Iron Flange Housing Bearing 1-3/8 inch Bore
Regular price
€66,53
ex VAT
Regular price
Sale price
€66,53
ex VAT
In stock
Price Break
10+
€50,56
20+
€47,72
30+
€47,16
40+
€46,59
50+
€46,02
75+
€45,45
100+
€42,61
200+
€42,04
250+
€41,47
500+
€40,91
1000+
€39,77
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- LFTC
- Bolt Hole Centres:
- 100.01mm = 3.937 (3-15/16) inch
Technical
Technical
| Bore | 1-3/8 inch |
|---|---|
| L | 3.661 inch |
| H | 4.921 inch |
| J | 3.937 inch |
| G | 0.375 inch |
| A | 0.866 inch |
| A1 | 1.488 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-3/8G+insonly">1035-1-3/8G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
