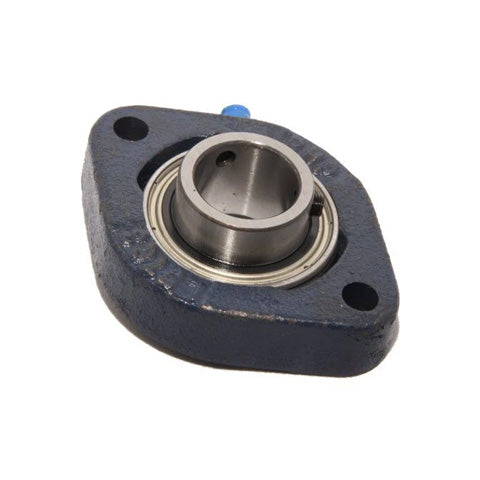

RHP LFTC1-3/16 Two Bolt Oval Cast Iron Flange Housing Bearing 1-3/16 inch Bore
RHP LFTC1-3/16 Two Bolt Oval Cast Iron Flange Housing Bearing 1-3/16 inch Bore
Regular price
€56,31
ex VAT
Regular price
Sale price
€56,31
ex VAT
In stock
Price Break
10+
€42,79
20+
€40,39
30+
€39,91
40+
€39,43
50+
€38,94
75+
€38,46
100+
€36,06
200+
€35,58
250+
€35,10
500+
€34,62
1000+
€33,66
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- LFTC
- Bolt Hole Centres:
- 90.49mm = 3.563 (3-9/16) inch
Technical
Technical
| Bore | 1-3/16 inch |
|---|---|
| L | 3.307 inch |
| H | 4.409 inch |
| J | 3.563 inch |
| G | 0.375 inch |
| A | 0.807 inch |
| A1 | 1.324 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 inch |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1-3/16G+insonly">1030-1-3/16G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
