SKU: JSC239SS316-JUB

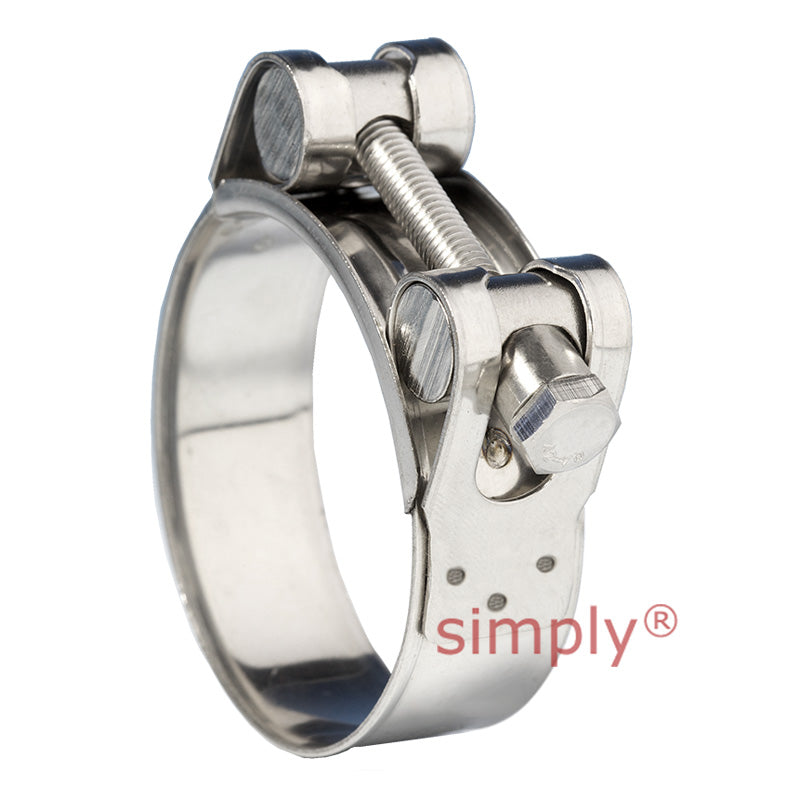

JSC239SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 227mm-239mm Band Width 25mm
JSC239SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 227mm-239mm Band Width 25mm
Regular price
€36,32
ex VAT
Regular price
Sale price
€36,32
ex VAT
Low stock
Price Break
3+
€30,70
5+
€29,46
9+
€28,84
19+
€27,91
49+
€27,29
74+
€25,74
99+
€21,71
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Quantity
Couldn't load pickup availability
Description
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 227mm
- Max Adjustment Range:
- 239mm
Technical
Technical

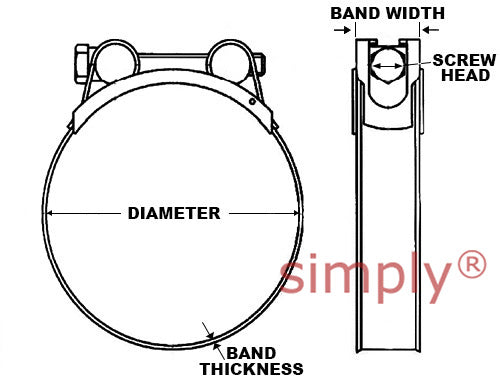

| Adjustment Range | 227mm - 239mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.5mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
