SKU: JSC213SS-JUB

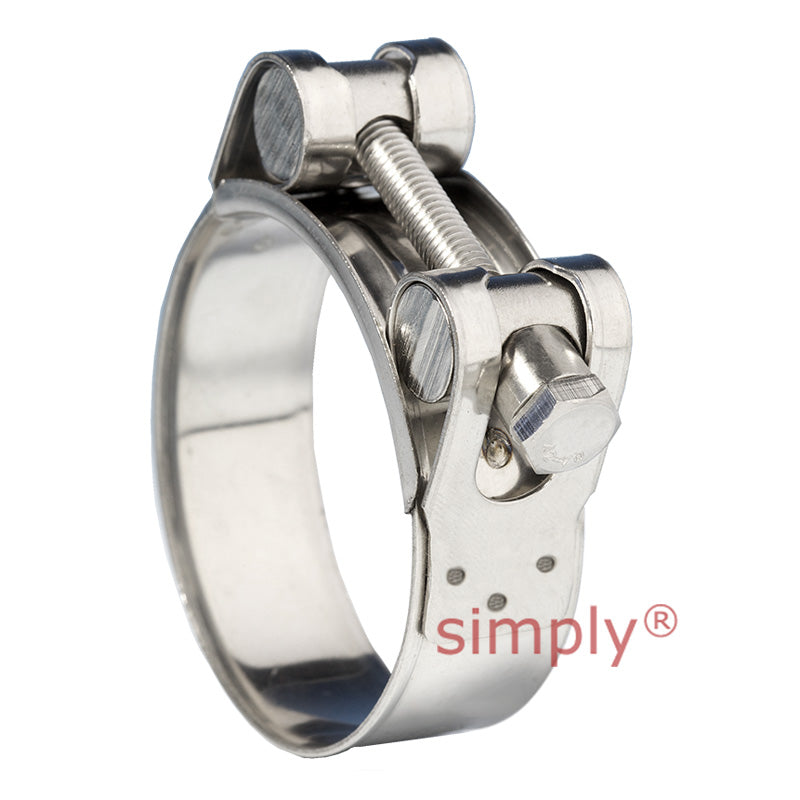

JSC213SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 201mm - 213mm Band Width 25mm
- Regular price
- €18,62 ex VAT
- Sale price
- €18,62
- Regular price
-
In stock
Quantity Price Breaks
3
€16,57
5
€15,64
9
€15,45
19
€15,27
49
€15,08
74
€14,90
99
€13,97
199
€13,78
249
€13,59
499
€13,41
999
€13,03
SKU:
JSC213SS-JUB
JSC213SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 201mm - 213mm Band Width 25mm
- Regular price
- €18,62 ex VAT
- Sale price
- €18,62
- Regular price
-
Description
304 Stainless Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
Technical
| Adjustment Range | = | 201mm - 213mm |
| Band Width (+/- 0.1) | = | 25mm |
| Band Thickness (+/- 0.1) | = | 1.5mm |
| Recommended Torque | = | 18.5Nm |
| Maximum Torque | = | 25Nm |
| Screw Head | = | 13mm |
