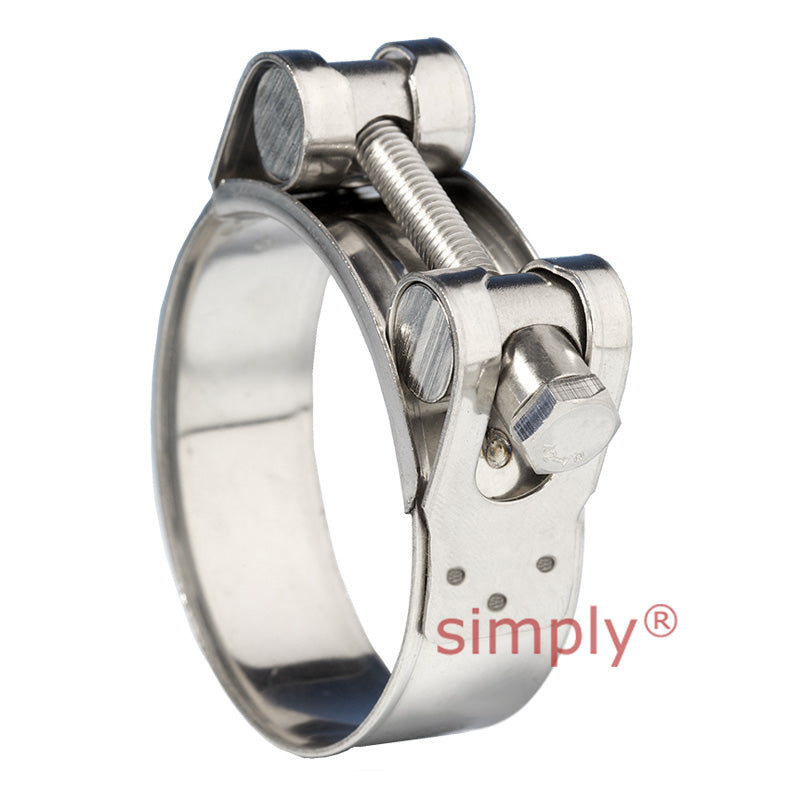

JSC174SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 162mm - 174mm Band Width 25mm

SKU: JSC174SS316-JUB

JSC174SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 162mm - 174mm Band Width 25mm

€25,36 ex VAT
€25,36
ex VAT
Not in stock

Quantity Price Breaks

3 €22,57
5 €21,30
9 €21,05
19 €20,80
49 €20,54
74 €20,29
99 €19,02
199 €18,77
249 €18,51
499 €18,26
999 €17,75
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
JSC174SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 162mm - 174mm Band Width 25mm
SKU: JSC174SS316-JUB

JSC174SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 162mm - 174mm Band Width 25mm

€25,36 ex VAT
€25,36
ex VAT

Description

316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.

Technical

Adjustment Range = 162mm - 174mm
Band Width (+/- 0.1) = 25mm
Band Thickness (+/- 0.1) = 1.5mm
Recommended Torque = 18.5Nm
Maximum Torque = 25Nm
Screw Head = 13mm
