SKU: JSC059SS316-JUB

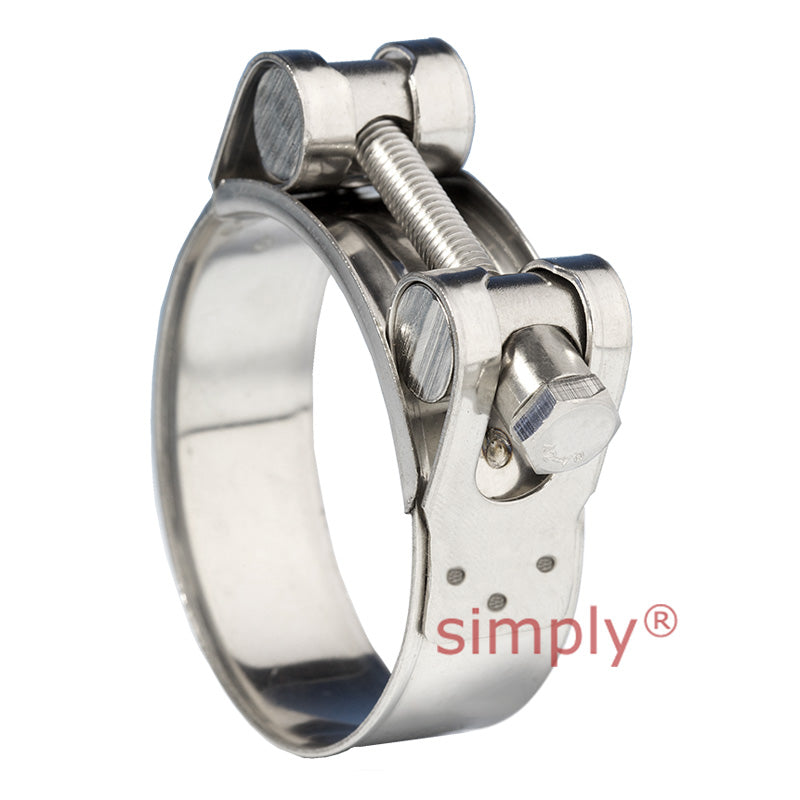

JSC059SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 56mm - 59mm Band Width 20mm
- Regular price
- €12,91 ex VAT
- Sale price
- €12,91
- Regular price
-
In stock
Quantity Price Breaks
3
€11,49
5
€10,84
9
€10,72
19
€10,59
49
€10,46
74
€10,33
99
€9,68
199
€9,55
249
€9,42
499
€9,30
999
€9,04
SKU:
JSC059SS316-JUB
JSC059SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 56mm - 59mm Band Width 20mm
- Regular price
- €12,91 ex VAT
- Sale price
- €12,91
- Regular price
-
Description
316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
Technical
| Adjustment Range | = | 56mm - 59mm |
| Band Width (+/- 0.1) | = | 20mm |
| Band Thickness (+/- 0.1) | = | 1mm |
| Recommended Torque | = | 6Nm |
| Maximum Torque | = | 8Nm |
| Screw Head | = | 10mm |
