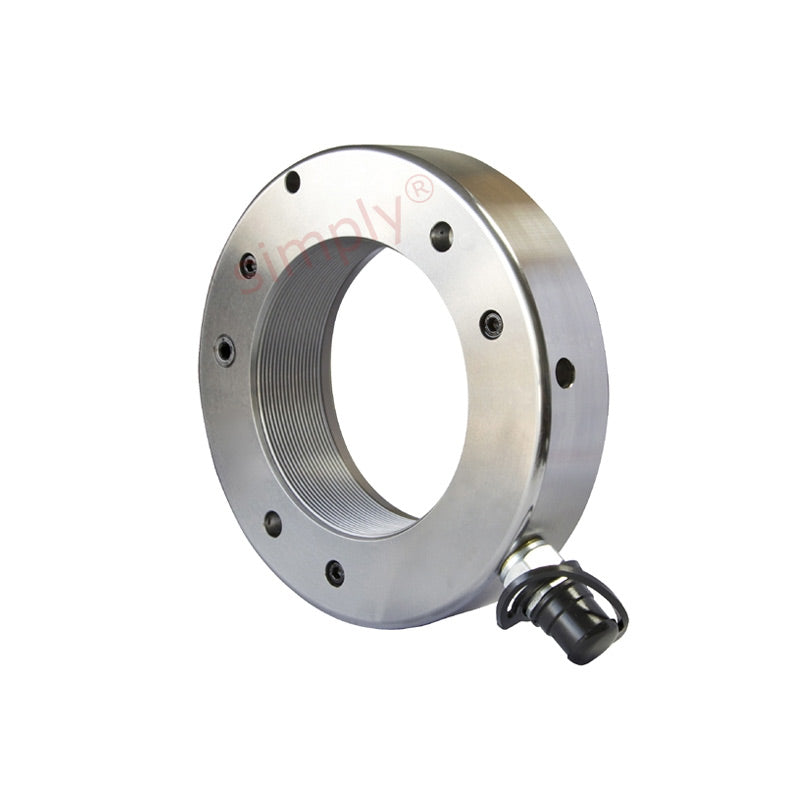

• BGL HMV76E Metric Hydraulic Nut Tr380x5 Thread - Allow 1-2 Days
1 1

SKU: HMV76E-BGL

BGL HMV76E Metric Hydraulic Nut Tr380x5 Thread - Allow 1-2 Days

BGL HMV76E Metric Hydraulic Nut Tr380x5 Thread - Allow 1-2 Days
€4.378,82 ex VAT
€4.378,82 ex VAT
Sale Sold out

In stock

Price Break
10+ €3.327,70
19+ €3.140,75
29+ €3.103,36
39+ €3.065,97
49+ €3.028,58
74+ €2.991,19
99+ €2.804,24
199+ €2.766,85
249+ €2.729,46
499+ €2.692,07
999+ €2.617,29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BGL HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of a Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve.
Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited.
Note: A spare set of piston seals and maintenance kit is supplied as standard.
Brand / Quality:
BGL - High Quality
Thread Size:
Tr380x5
Inside Diameter:
382mm
Outside Diameter:
498mm
Width:
58mm
Flange Width:
11mm
Technical
G Thread Tr380x5
d1 382mm
d2 476mm
d3 498mm
B 58mm
B1 11mm
Permitted piston displacement 16mm
Piston area 33500mm2
