SKU: HMV-29-EBF-HN-SNR

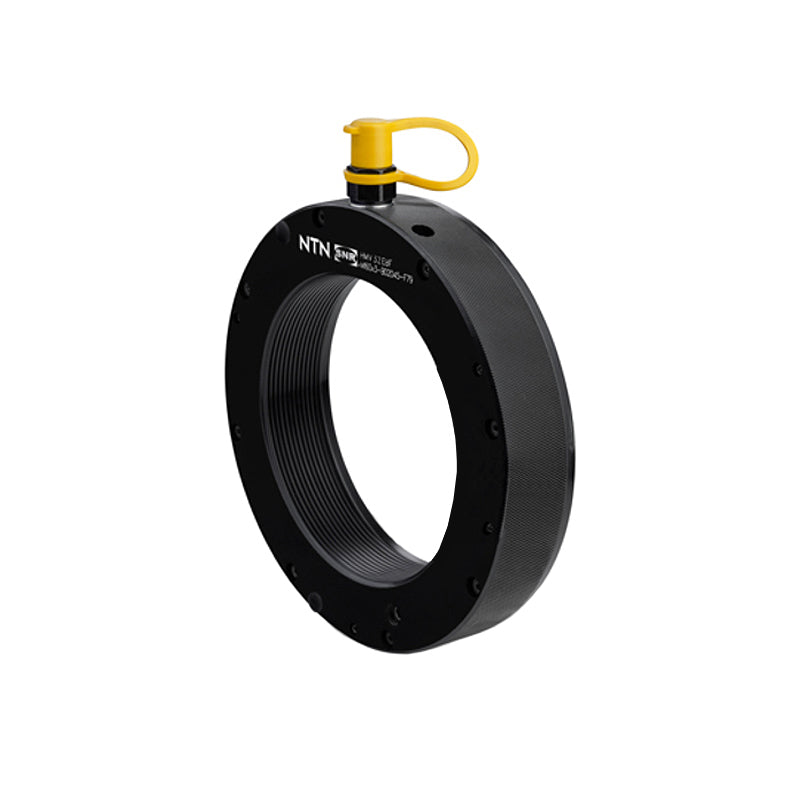

SNR HMV29 Metric Hydraulic Nut with M145x2 Thread - Allow 2-3 Days
- Regular price
- €1.520,95 ex VAT
- Sale price
- €1.520,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€1.353,65
5
€1.277,60
9
€1.262,39
19
€1.247,18
49
€1.231,97
74
€1.216,76
99
€1.140,71
199
€1.125,50
249
€1.110,29
499
€1.095,08
999
€1.064,67
SKU:
HMV-29-EBF-HN-SNR
SNR HMV29 Metric Hydraulic Nut with M145x2 Thread - Allow 2-3 Days
- Regular price
- €1.520,95 ex VAT
- Sale price
- €1.520,95
- Regular price
-
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.

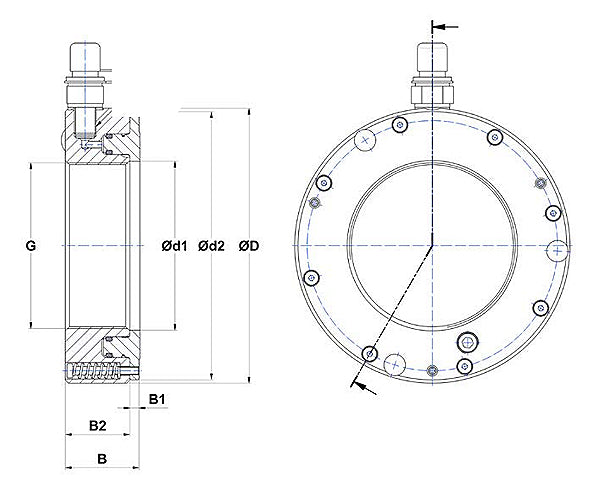

Technical
| HMV | = | HMV29 |
| Thread G | = | M145x2 |
| Outside Diameter D | = | 214mm |
| Total Width B | = | 46mm |
| Piston Diameter max. d2 | = | 210mm |
| Permitted Piston Stroke | = | 5mm |
| Flange Width B1 | = | 7mm |
| Body Width B2 | = | 39mm |
| Diameter d1 | = | 145.5mm |
| Piston Surface Area | = | 7400mm2 |
| Weight | = | 6.7kg |
