SKU: HE222-EU

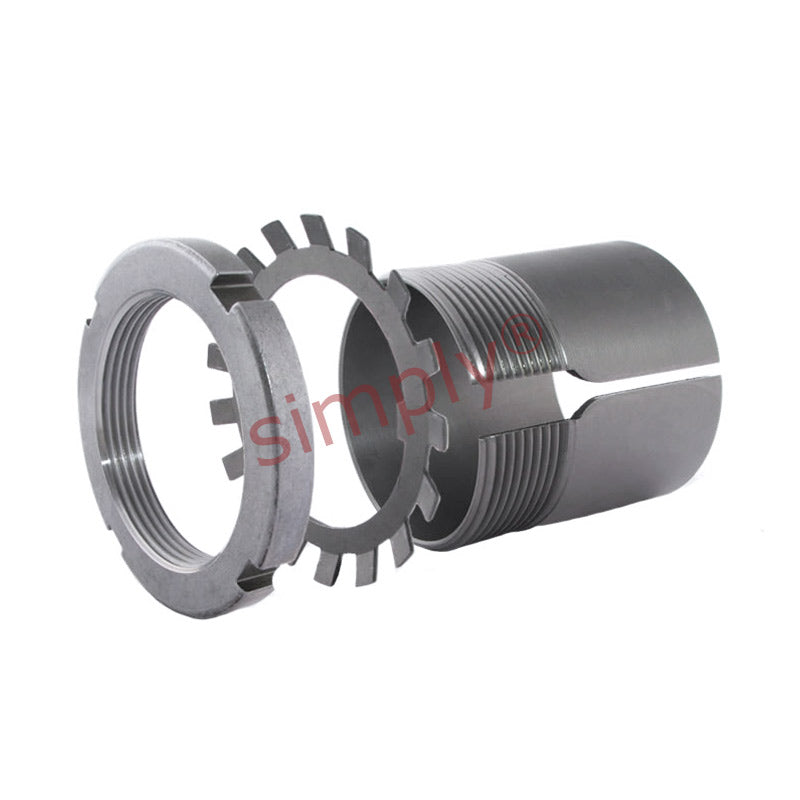

HE222 Budget Imperial Adaptor Sleeve for 4 inch Shaft
- Regular price
- €126,37 ex VAT
- Sale price
- €126,37
- Regular price
-
Not in stock
Quantity Price Breaks
10
€112,47
19
€106,15
29
€104,89
39
€103,62
49
€102,36
74
€101,10
99
€94,78
199
€93,51
249
€92,25
499
€90,99
999
€88,46
SKU:
HE222-EU
HE222 Budget Imperial Adaptor Sleeve for 4 inch Shaft
- Regular price
- €126,37 ex VAT
- Sale price
- €126,37
- Regular price
-
Description
|
Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position |
Technical
| --- | = | Dimensions |
| d1 | = | 101.6mm (4) inch |
| d | = | 110mm |
| d3 | = | 145mm |
| B1 | = | 63mm |
| B2 | = | 21mm |
| G | = | Thread 110x2mm |
| Weight | = | 1.65 kg |
| --- | = | Assembly Parts |
| Sleeve | = | HE222 |
| Nut | = | KM22 |
| Washer | = | MB22 |
| Hydraulic nut | = | HMV22E |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1222K+taper> | = | 1222K< |
| /a> | = |
