SKU: HCFL214

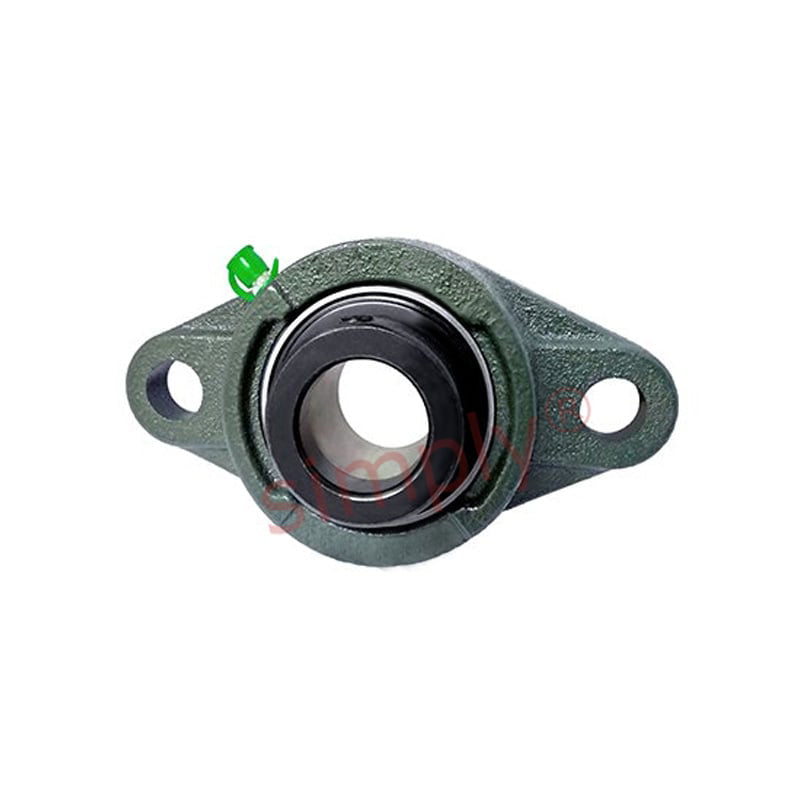

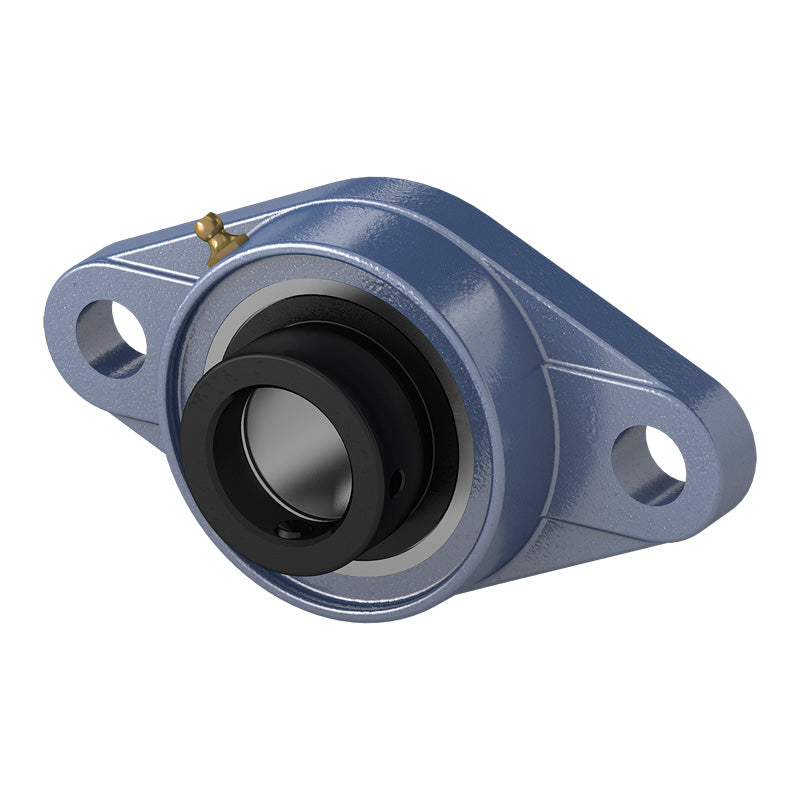

HCFL214 Metric Two Bolt Cast Iron Oval Housing with 70mm Eccentric Collar Insert
- Regular price
- €97,20 ex VAT
- Sale price
- €97,20
- Regular price
-
Not in stock
Quantity Price Breaks
3
€86,51
4
€81,65
9
€80,68
19
€79,70
49
€78,73
99
€77,76
499
€72,90
999
€71,93
1999
€70,96
2999
€69,98
4999
€68,04
SKU:
HCFL214
HCFL214 Metric Two Bolt Cast Iron Oval Housing with 70mm Eccentric Collar Insert
- Regular price
- €97,20 ex VAT
- Sale price
- €97,20
- Regular price
-
Description
HCFL200 Series Normal Duty 2 Bolt Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
Technical
| d | = | 70mm |
| a | = | 265mm |
| e | = | 216mm |
| i | = | 31mm |
| g | = | 22mm |
| l | = | 54mm |
| s | = | 23mm |
| b | = | 160mm |
| z | = | 82.6mm |
| B1 | = | 85.7mm |
| n | = | 34.1mm |
| Bolt size | = | M20 |
| Bearing no | = | HC214 |
| Housing no | = | FL214 |
| Weight | = | 5.53 kg |
