SKU: H309E-EU

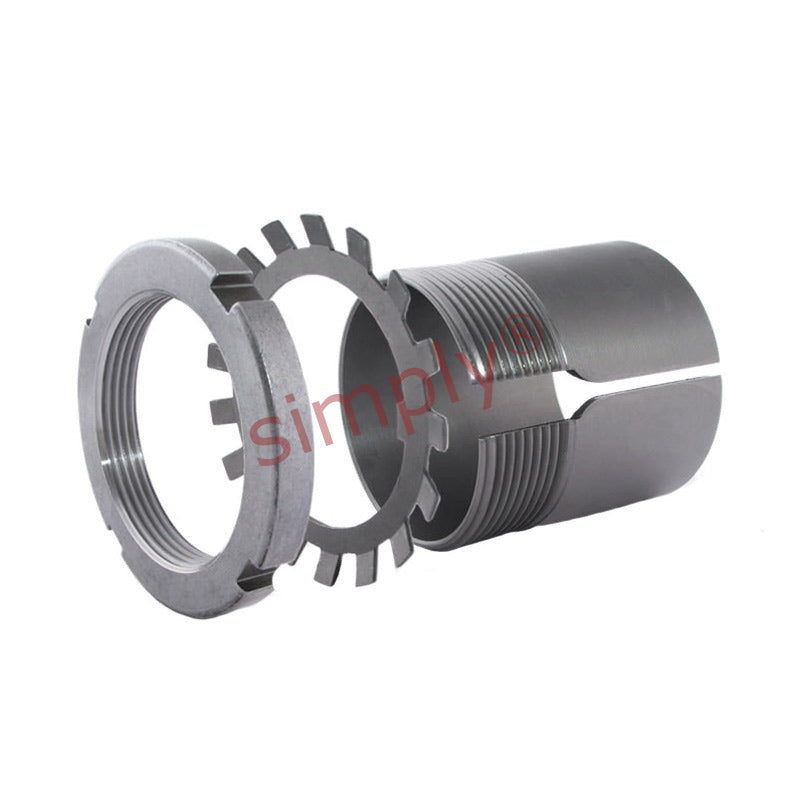

H309E Budget Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft
- Regular price
- €24,67 ex VAT
- Sale price
- €24,67
- Regular price
-
Not in stock
Quantity Price Breaks
10
€21,96
19
€20,72
29
€20,48
39
€20,23
49
€19,98
74
€19,74
99
€18,50
199
€18,26
249
€18,01
499
€17,76
999
€17,27
SKU:
H309E-EU
H309E Budget Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft
- Regular price
- €24,67 ex VAT
- Sale price
- €24,67
- Regular price
-
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 40mm |
| d | = | 45mm |
| d3 | = | 65mm |
| B1 | = | 39mm |
| B2 | = | 13mm |
| G | = | Thread 45x1.5mm |
| Weight | = | 0.24 kg |
| --- | = | Assembly Parts |
| Sleeve | = | H309E |
| Nut | = | KMFE9 |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2209KTN9+taper> | = | C2209KTN9< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2209K+taper> | = | C2209K< |
| /a> | = |
