SKU: H309C-EU

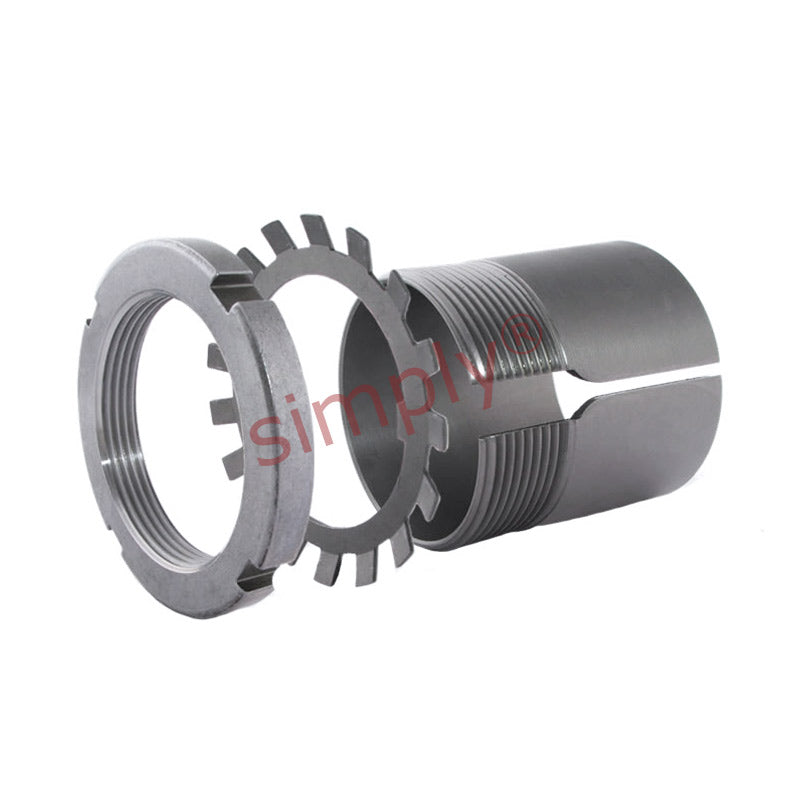

H309C Budget Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft
- Regular price
- €26,78 ex VAT
- Sale price
- €26,78
- Regular price
-
Not in stock
Quantity Price Breaks
10
€23,83
19
€22,50
29
€22,23
39
€21,96
49
€21,69
74
€21,42
99
€20,09
199
€19,82
249
€19,55
499
€19,28
999
€18,75
SKU:
H309C-EU
H309C Budget Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft
- Regular price
- €26,78 ex VAT
- Sale price
- €26,78
- Regular price
-
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 40mm |
| d | = | 45mm |
| d3 | = | 65mm |
| B1 | = | 39mm |
| B2 | = | 12mm |
| G | = | Thread 45x1.5mm |
| Weight | = | 0.23 kg |
| --- | = | Assembly Parts |
| Sleeve | = | H309C |
| Nut | = | KM9 |
| Washer | = | MB9C |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2209K-2RS+taper> | = | 2209K-2RS< |
| /a> | = |
