SKU: H309-EU

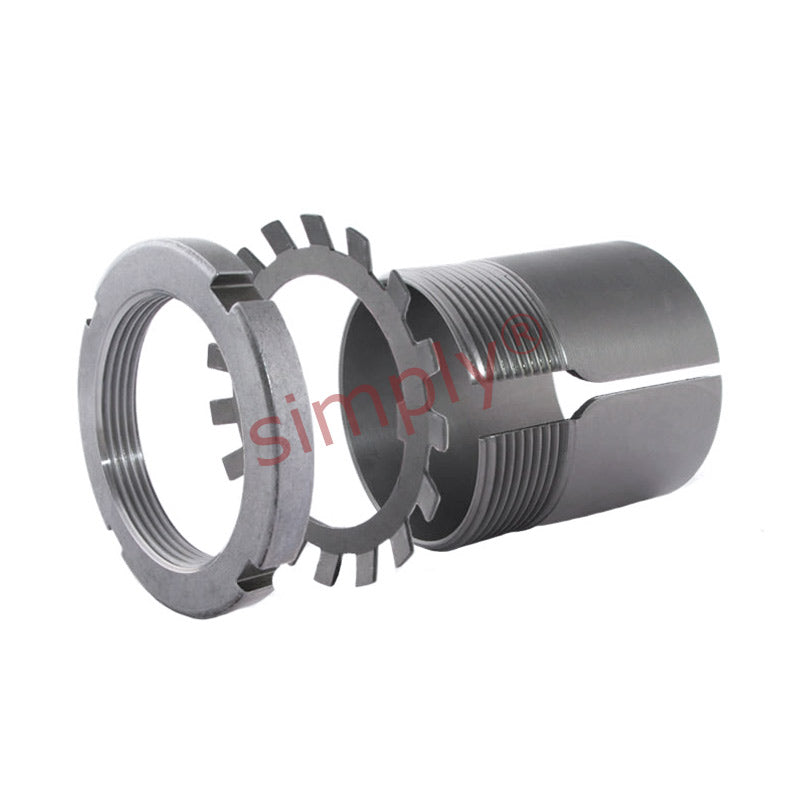

H309 Budget Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft
- Regular price
- €17,19 ex VAT
- Sale price
- €17,19
- Regular price
-
In stock
Quantity Price Breaks
10
€15,30
19
€14,44
29
€14,27
39
€14,10
49
€13,92
74
€13,75
99
€12,89
199
€12,72
249
€12,55
499
€12,38
999
€12,03
SKU:
H309-EU
H309 Budget Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft
- Regular price
- €17,19 ex VAT
- Sale price
- €17,19
- Regular price
-
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 40mm |
| d | = | 45mm |
| d3 | = | 65mm |
| B1 | = | 39mm |
| B2 | = | 11mm |
| G | = | Thread 45x1.5mm |
| Weight | = | 0.23 kg |
| --- | = | Assembly Parts |
| Sleeve | = | H309 |
| Nut | = | KM9 |
| Washer | = | MB9 |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2209K+taper+self+open> | = | 2209K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1309K+taper+self+open> | = | 1309K< |
| /a> | = | |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22209K+taper> | = | 22209K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=21309K+taper> | = | 21309K< |
| /a> | = |
