SKU: H308E-EU

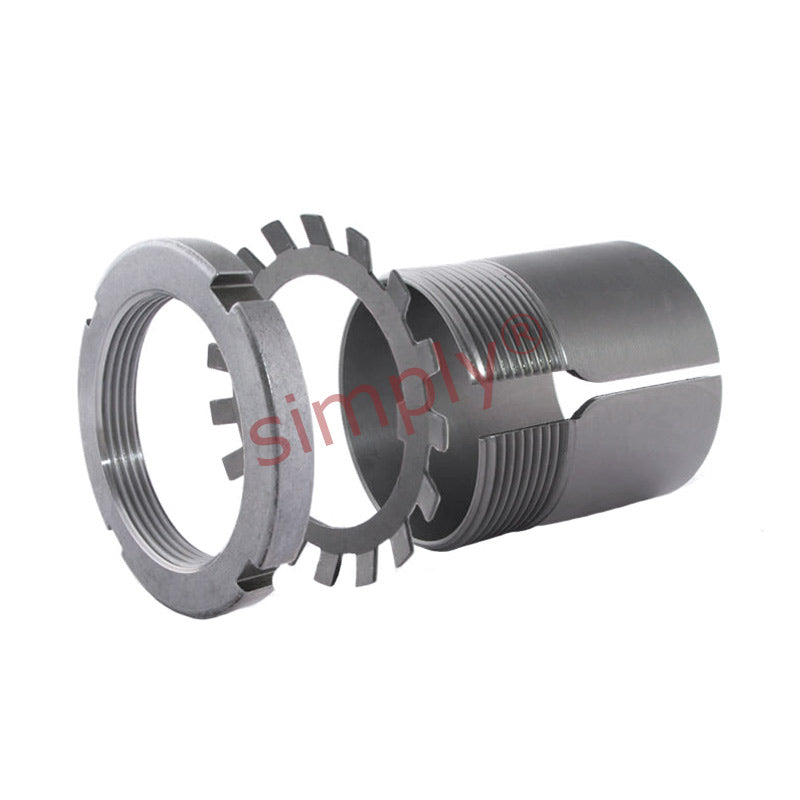

H308E Budget Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
- Regular price
- €31,98 ex VAT
- Sale price
- €31,98
- Regular price
-
Not in stock
Quantity Price Breaks
10
€28,46
19
€26,86
29
€26,54
39
€26,22
49
€25,90
74
€25,58
99
€23,99
199
€23,67
249
€23,35
499
€23,03
999
€22,39
SKU:
H308E-EU
H308E Budget Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
- Regular price
- €31,98 ex VAT
- Sale price
- €31,98
- Regular price
-
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 35mm |
| d | = | 40mm |
| d3 | = | 58mm |
| B1 | = | 36mm |
| B2 | = | 13mm |
| G | = | Thread 40x1.5mm |
| Weight | = | 0.19 kg |
| --- | = | Assembly Parts |
| Sleeve | = | H308E |
| Nut | = | KMFE8 |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2208KTN9+taper> | = | C2208KTN9< |
| /a> | = |
