SKU: H307E-EU

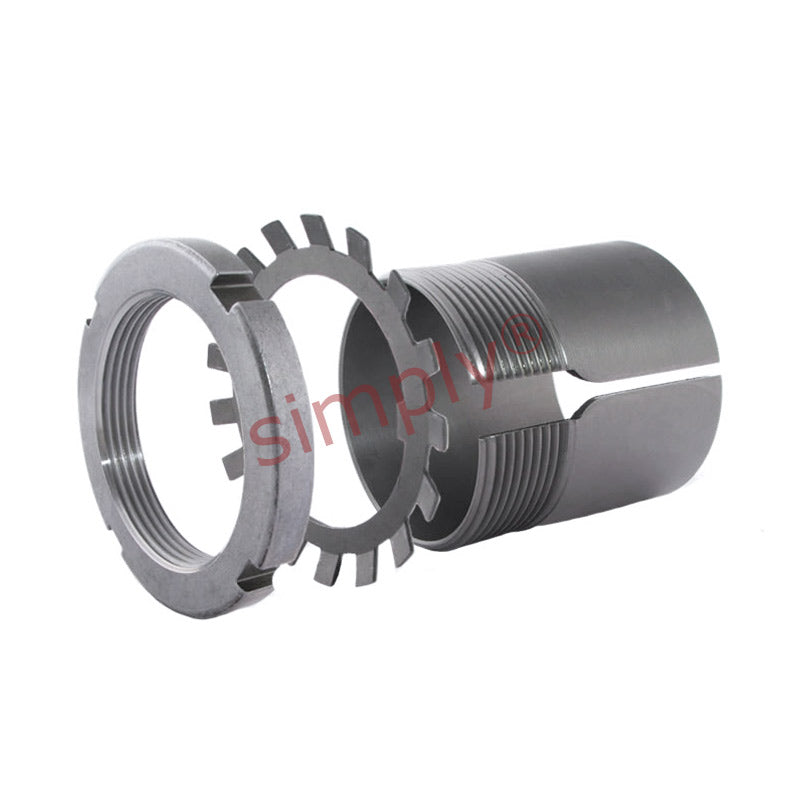

H307E Budget Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
- Regular price
- €37,03 ex VAT
- Sale price
- €37,03
- Regular price
-
Not in stock
Quantity Price Breaks
10
€32,96
19
€31,11
29
€30,73
39
€30,36
49
€29,99
74
€29,62
99
€27,77
199
€27,40
249
€27,03
499
€26,66
999
€25,92
SKU:
H307E-EU
H307E Budget Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
- Regular price
- €37,03 ex VAT
- Sale price
- €37,03
- Regular price
-
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 30mm |
| d | = | 35mm |
| d3 | = | 52mm |
| B1 | = | 35mm |
| B2 | = | 11.5mm |
| G | = | Thread 35x1.5mm |
| Weight | = | 0.15 kg |
| --- | = | Assembly Parts |
| Sleeve | = | H307E |
| Nut | = | KMFE7 |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2207KTN9+taper> | = | C2207KTN9< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2207K+taper> | = | C2207K< |
| /a> | = |
