SKU: H307C-EU

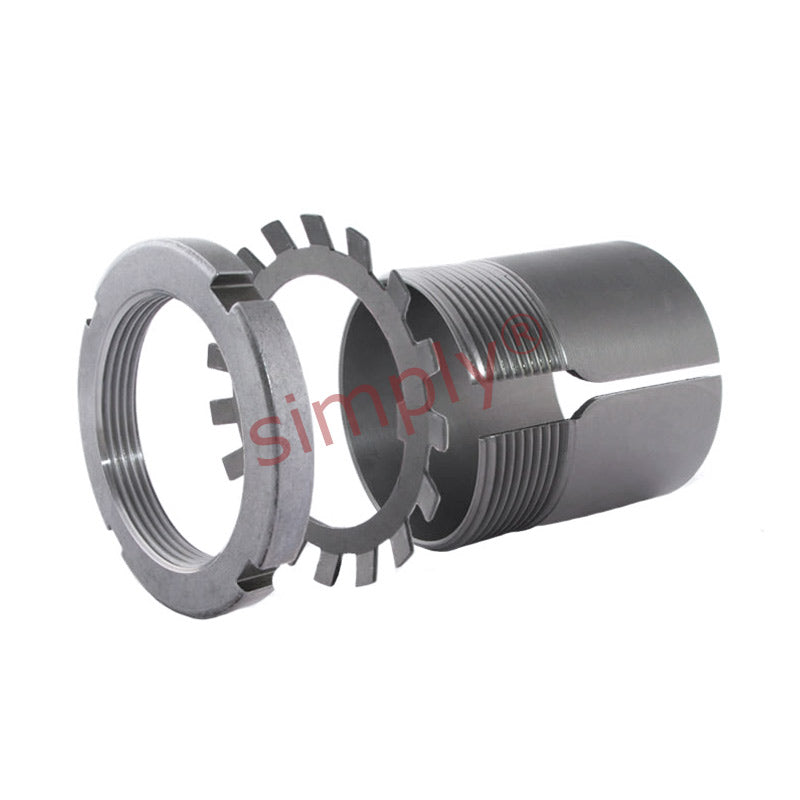

H307C Budget Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
- Regular price
- €23,43 ex VAT
- Sale price
- €23,43
- Regular price
-
Not in stock
Quantity Price Breaks
10
€20,85
19
€19,68
29
€19,45
39
€19,21
49
€18,98
74
€18,74
99
€17,57
199
€17,34
249
€17,10
499
€16,87
999
€16,40
SKU:
H307C-EU
H307C Budget Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
- Regular price
- €23,43 ex VAT
- Sale price
- €23,43
- Regular price
-
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 30mm |
| d | = | 35mm |
| d3 | = | 52mm |
| B1 | = | 35mm |
| B2 | = | 10mm |
| G | = | Thread 35x1.5mm |
| Weight | = | 0.14 kg |
| --- | = | Assembly Parts |
| Sleeve | = | H307C |
| Nut | = | KM7 |
| Washer | = | MB7C |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2207K-2RS+taper> | = | 2207K-2RS< |
| /a> | = |
