SKU: H307-EU

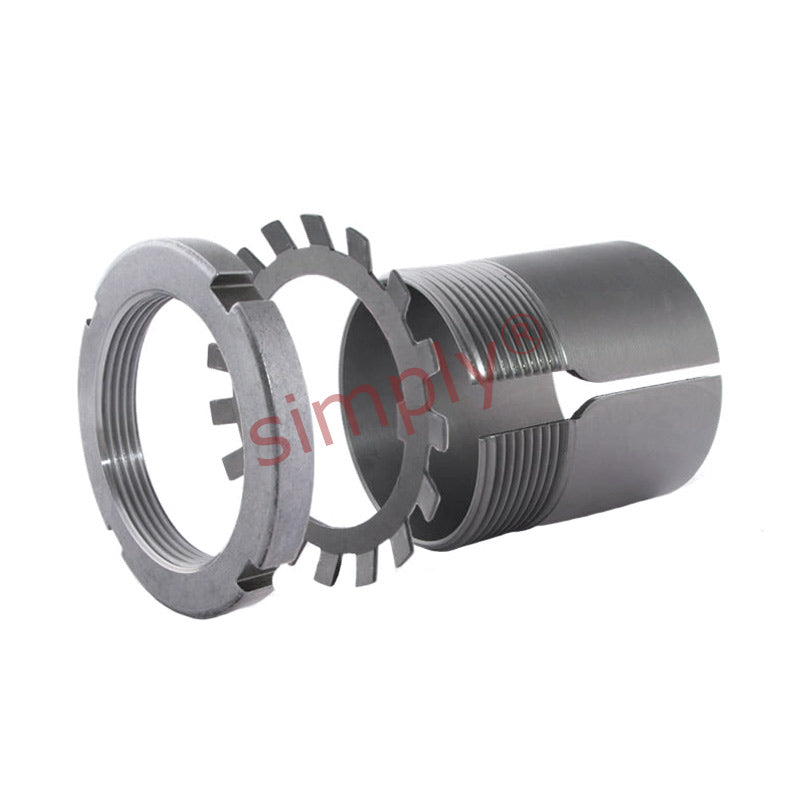

H307 Budget Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
- Regular price
- €15,57 ex VAT
- Sale price
- €15,57
- Regular price
-
In stock
Quantity Price Breaks
10
€13,86
19
€13,08
29
€12,92
39
€12,77
49
€12,61
74
€12,46
99
€11,68
199
€11,52
249
€11,37
499
€11,21
999
€10,90
SKU:
H307-EU
H307 Budget Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
- Regular price
- €15,57 ex VAT
- Sale price
- €15,57
- Regular price
-
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 30mm |
| d | = | 35mm |
| d3 | = | 52mm |
| B1 | = | 35mm |
| B2 | = | 9mm |
| G | = | Thread 35x1.5mm |
| Weight | = | 0.14 kg |
| --- | = | Assembly Parts |
| Sleeve | = | H307 |
| Nut | = | KM7 |
| Washer | = | MB7 |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2207K+taper+self+open> | = | 2207K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1307K+taper+self+open> | = | 1307K< |
| /a> | = | |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22207K+taper> | = | 22207K< |
| /a> | = |
