SKU: H306E-EU

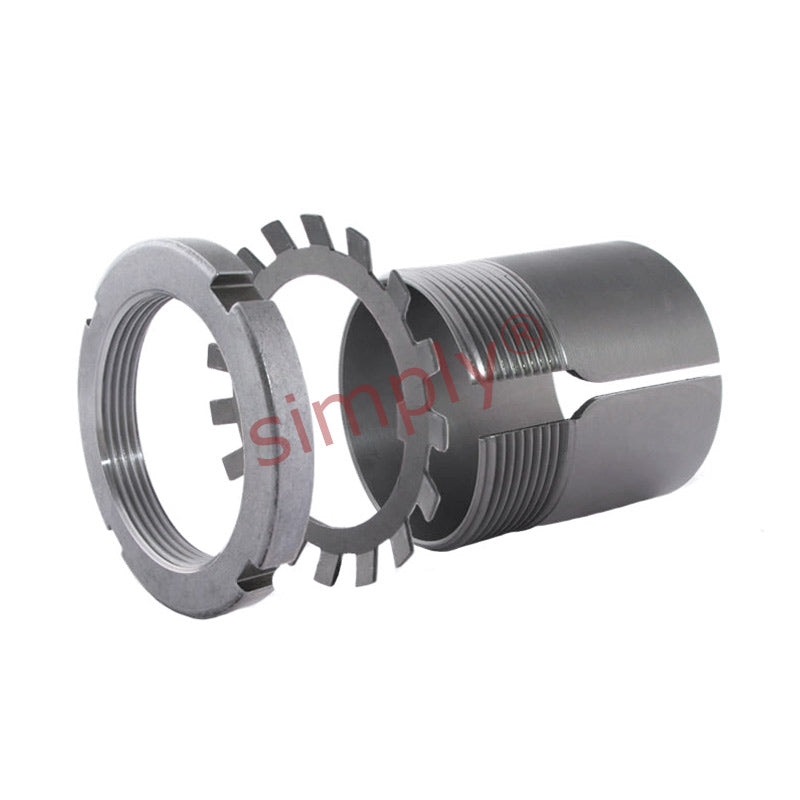

H306E Budget Adaptor Sleeve with Lock Nut and Locking Device for 25mm Shaft
- Regular price
- €56,72 ex VAT
- Sale price
- €56,72
- Regular price
-
Not in stock
Quantity Price Breaks
10
€50,48
19
€47,64
29
€47,08
39
€46,51
49
€45,94
74
€45,38
99
€42,54
199
€41,97
249
€41,41
499
€40,84
999
€39,70
SKU:
H306E-EU
H306E Budget Adaptor Sleeve with Lock Nut and Locking Device for 25mm Shaft
- Regular price
- €56,72 ex VAT
- Sale price
- €56,72
- Regular price
-
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 25mm |
| d | = | 30mm |
| d3 | = | 45mm |
| B1 | = | 31mm |
| B2 | = | 10.5mm |
| G | = | Thread 30x1.5mm |
| Weight | = | 0.11 kg |
| --- | = | Assembly Parts |
| Sleeve | = | H306E |
| Nut | = | KMFE6 |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2206KTN9+taper> | = | C2206KTN9< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2206K+taper> | = | C2206K< |
| /a> | = |
