SKU: H2307-EU

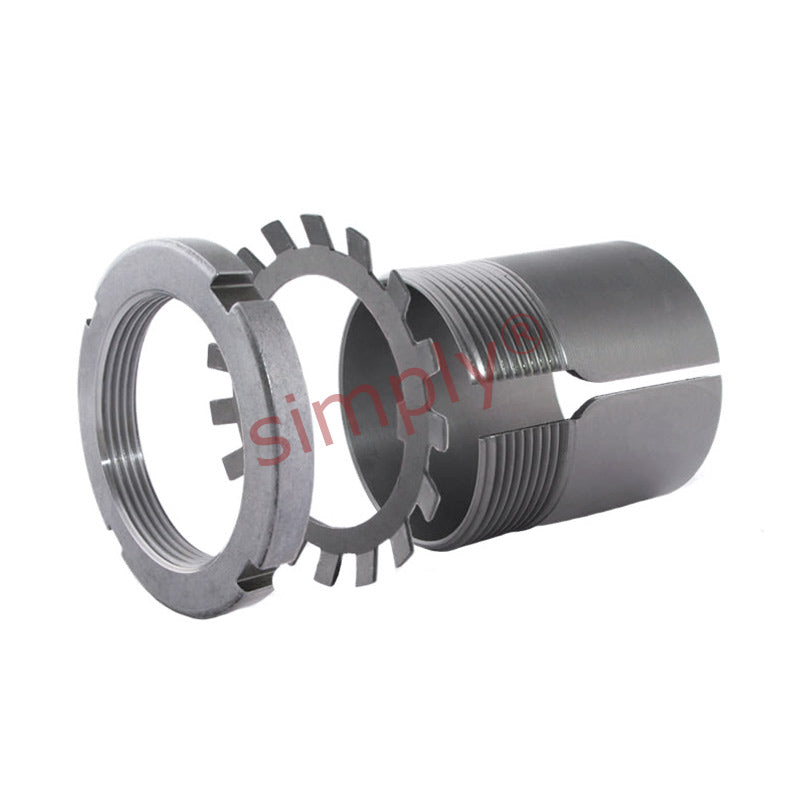

H2307 Budget Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
- Regular price
- €22,47 ex VAT
- Sale price
- €22,47
- Regular price
-
In stock
Quantity Price Breaks
10
€20,00
19
€18,87
29
€18,65
39
€18,43
49
€18,20
74
€17,98
99
€16,85
199
€16,63
249
€16,40
499
€16,18
999
€15,73
SKU:
H2307-EU
H2307 Budget Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
- Regular price
- €22,47 ex VAT
- Sale price
- €22,47
- Regular price
-
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 30mm |
| d | = | 35mm |
| d3 | = | 52mm |
| B1 | = | 43mm |
| B2 | = | 9mm |
| G | = | Thread 35x1.5mm |
| Weight | = | 0.16 kg |
| --- | = | Assembly Parts |
| Sleeve | = | H2307 |
| Nut | = | KM7 |
| Washer | = | MB7 |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2307K+taper+self+open> | = | 2307K< |
| /a> | = |
