SKU: H212-EU

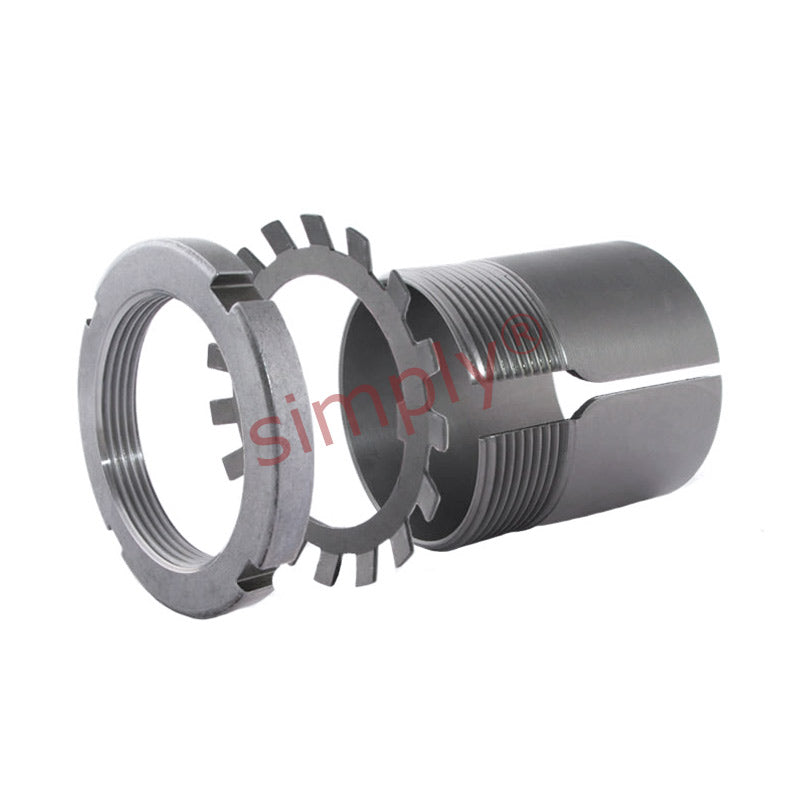

H212 Budget Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
- Regular price
- €21,36 ex VAT
- Sale price
- €21,36
- Regular price
-
Not in stock
Quantity Price Breaks
10
€19,01
19
€17,94
29
€17,73
39
€17,52
49
€17,30
74
€17,09
99
€16,02
199
€15,81
249
€15,59
499
€15,38
999
€14,95
SKU:
H212-EU
H212 Budget Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
- Regular price
- €21,36 ex VAT
- Sale price
- €21,36
- Regular price
-
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 55mm |
| d | = | 60mm |
| d3 | = | 80mm |
| B1 | = | 38mm |
| B2 | = | 12.5mm |
| G | = | Thread 60x2mm |
| Weight | = | 0.31 kg |
| --- | = | Assembly Parts |
| Sleeve | = | H212 |
| Nut | = | KM12 |
| Washer | = | MB12 |
| Hydraulic nut | = | HMV12E |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1212K+taper+self+open> | = | 1212K< |
| /a> | = |
