SKU: H210-EU

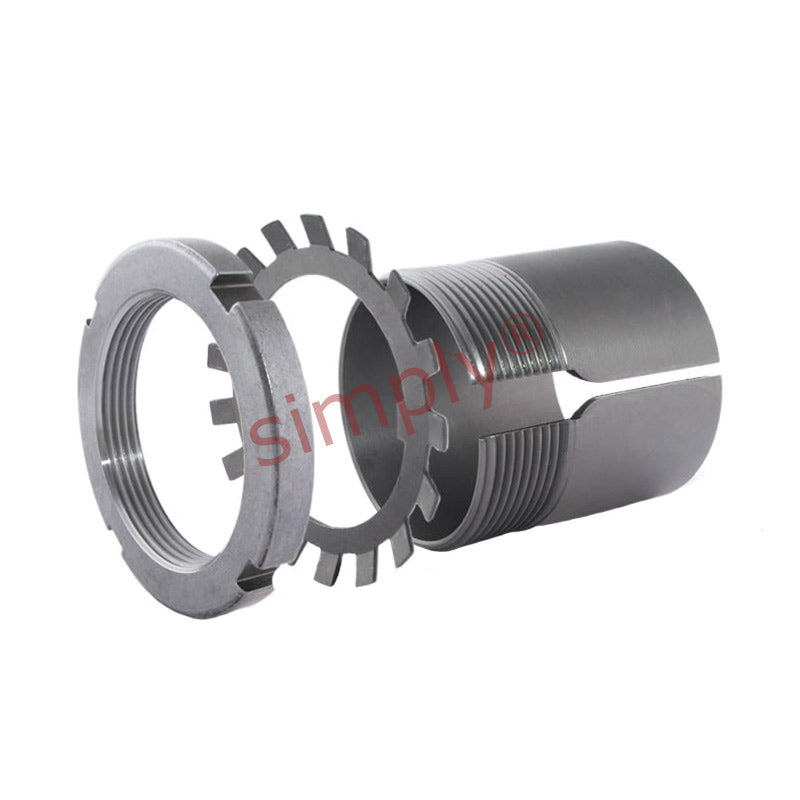

H210 Budget Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
- Regular price
- €17,15 ex VAT
- Sale price
- €17,15
- Regular price
-
In stock
Quantity Price Breaks
10
€15,26
19
€14,41
29
€14,23
39
€14,06
49
€13,89
74
€13,72
99
€12,86
199
€12,69
249
€12,52
499
€12,35
999
€12,01
SKU:
H210-EU
H210 Budget Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
- Regular price
- €17,15 ex VAT
- Sale price
- €17,15
- Regular price
-
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 45mm |
| d | = | 50mm |
| d3 | = | 70mm |
| B1 | = | 35mm |
| B2 | = | 12mm |
| G | = | Thread 50x1.5mm |
| Weight | = | 0.24 kg |
| --- | = | Assembly Parts |
| Sleeve | = | H210 |
| Nut | = | KM10 |
| Washer | = | MB10 |
| Hydraulic nut | = | HMV10E |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1210K+taper+self+open> | = | 1210K< |
| /a> | = |
