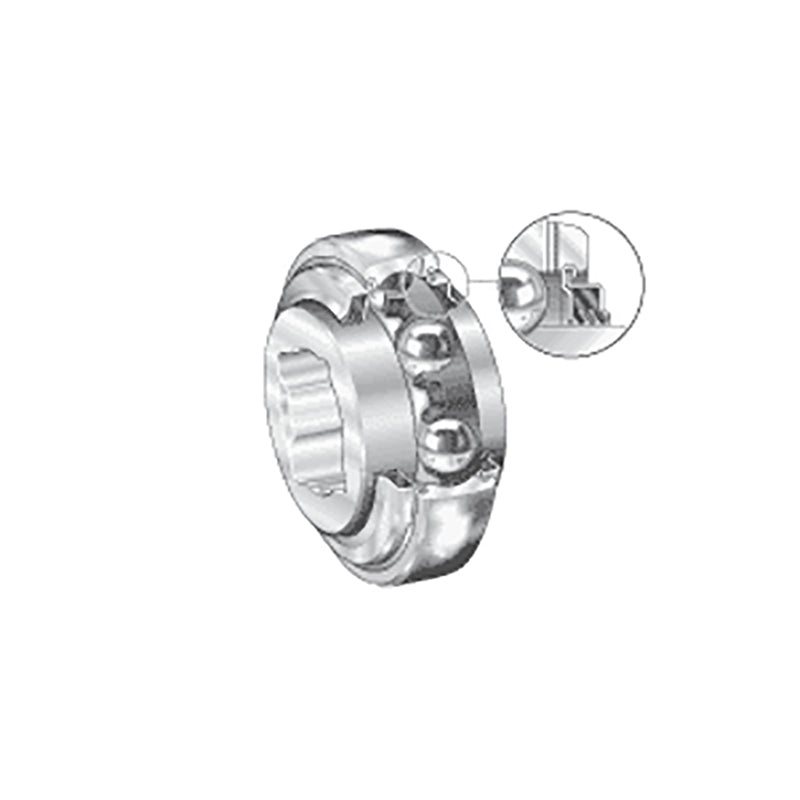

INA GVK102208KTTBAH10 Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1-1/8 inch Bore

SKU: GVK102-208-KTT-B-AH10-AS2/V-INA

INA GVK102208KTTBAH10 Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1-1/8 inch Bore

€86,07 ex VAT
€86,07
ex VAT
Not in stock

Quantity Price Breaks

3 €76,60
5 €72,30
10 €71,44
15 €70,58
20 €69,72
30 €68,86
40 €64,55
50 €63,69
60 €62,83
75 €61,97
100 €60,25
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
INA GVK102208KTTBAH10 Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1-1/8 inch Bore
SKU: GVK102-208-KTT-B-AH10-AS2/V-INA

INA GVK102208KTTBAH10 Imperial Spherical Outer Square Bore Bearing Insert with T Seals 1-1/8 inch Bore

€86,07 ex VAT
€86,07
ex VAT

Description

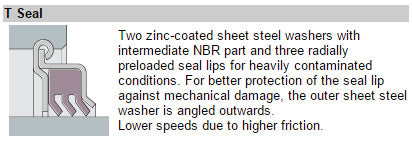

INA GVK..-KTT-B Series Inserts: Bearing insert with spherical outer race, square bore and T seals. Bearings with a profiled bore are used where shafts must transmit very high torques and this is only possible using square or hexagonal shafts. Rotation is prevented by the geometrical locking effect. These bearings have a Corrotect® coating. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Can be re-lubricated, compensation of misalignment.
