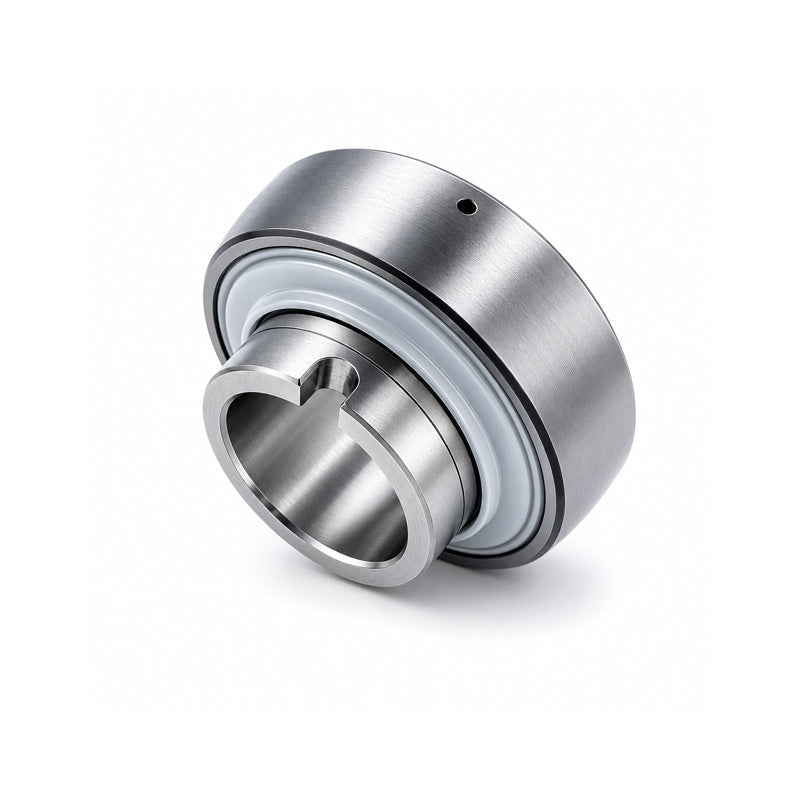

INA GLE60XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 60x110x61.9mm

SKU: GLE60-KRR-B-INA

INA GLE60XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 60x110x61.9mm

€155,61 ex VAT
€155,61
ex VAT
Not in stock

Quantity Price Breaks

3 €138,49
5 €130,71
10 €129,16
15 €127,60
20 €126,04
30 €124,49
40 €116,71
50 €115,15
60 €113,60
75 €112,04
100 €108,93
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
INA GLE60XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 60x110x61.9mm
SKU: GLE60-KRR-B-INA

INA GLE60XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 60x110x61.9mm

€155,61 ex VAT
€155,61
ex VAT

Description

INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C.
Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range.
