SKU: GLE30-KRR-B-INA

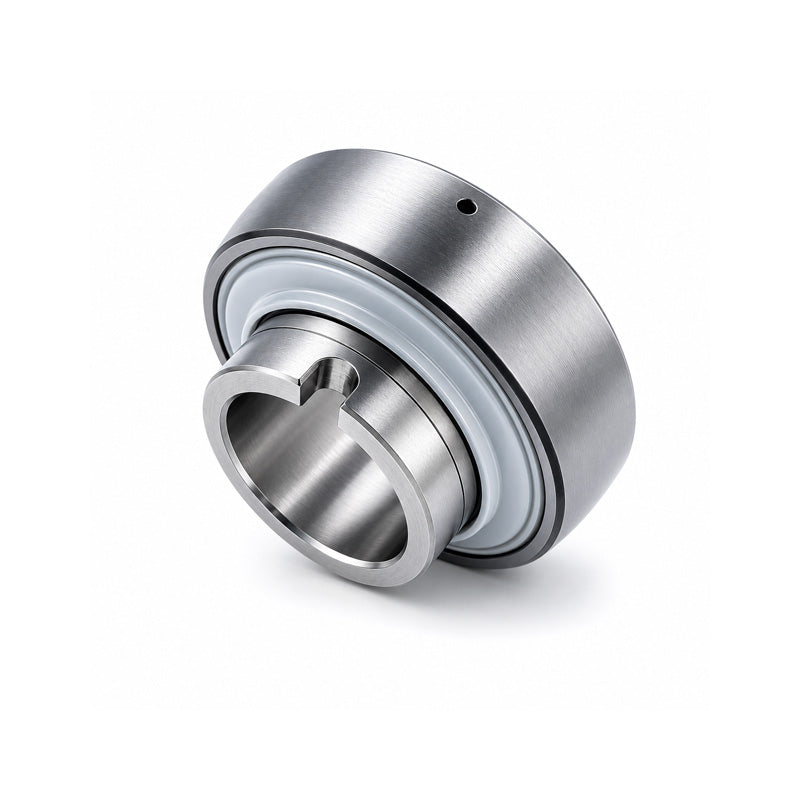

INA GLE30XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 30x62x36.5mm
- Regular price
- €47,69 ex VAT
- Sale price
- €47,69
- Regular price
-
Not in stock
Quantity Price Breaks
3
€42,44
5
€40,06
10
€39,58
15
€39,11
20
€38,63
30
€38,15
40
€35,77
50
€35,29
60
€34,81
75
€34,34
100
€33,38
SKU:
GLE30-KRR-B-INA
INA GLE30XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 30x62x36.5mm
- Regular price
- €47,69 ex VAT
- Sale price
- €47,69
- Regular price
-
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
