SKU: GE60ES.EU

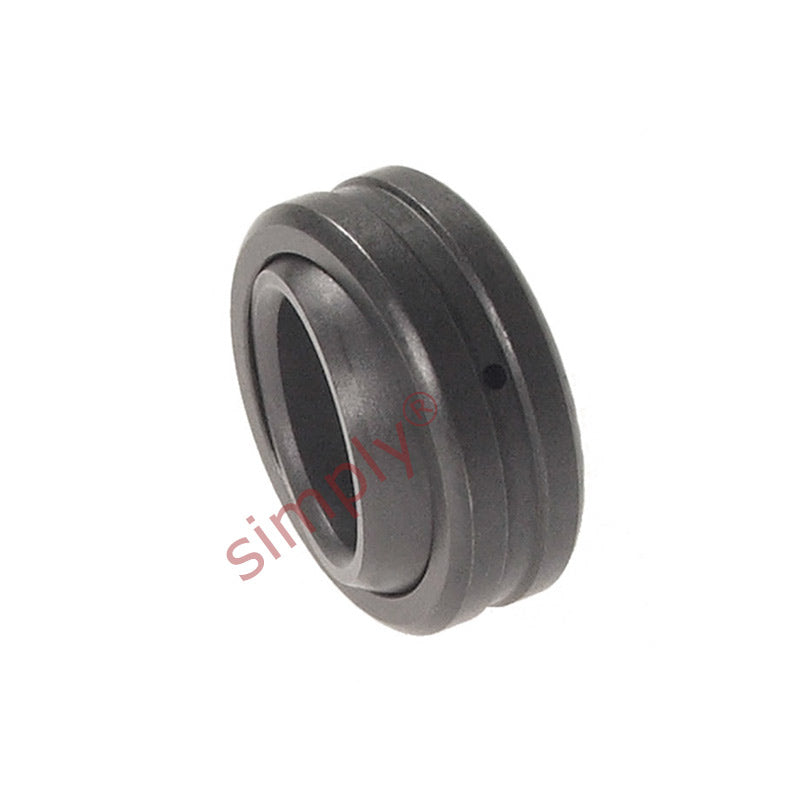

GE60ES Spherical Plain Bearing 60x90x44x36mm
- Regular price
- €35,43 ex VAT
- Sale price
- €35,43
- Regular price
-
In stock
Quantity Price Breaks
10+
€31,53
19+
€29,76
29+
€29,41
39+
€29,05
49+
€28,70
74+
€28,34
99+
€26,57
199+
€26,22
249+
€25,86
499+
€25,51
999+
€24,80
SKU:
GE60ES.EU
GE60ES Spherical Plain Bearing 60x90x44x36mm
- Regular price
- €35,43 ex VAT
- Sale price
- €35,43
- Regular price
-
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |

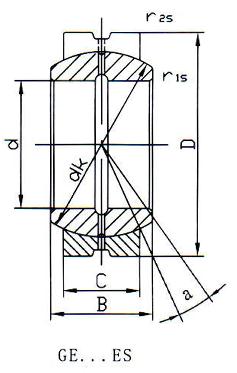

Technical
| d | = | 60mm |
| D | = | 90mm |
| B | = | 44mm |
| C | = | 36mm |
| dk | = | 80mm |
| rs min | = | 1mm |
| r1s min | = | 1mm |
| Angle & | = | alpha |
| = | 6& | |
| deg | = | |
| Dynamic load Co | = | 245 kN |
| Static load Cor | = | 1220 kN |
| Weight | = | 1.04 kg |
