SKU: GE15UK-EU

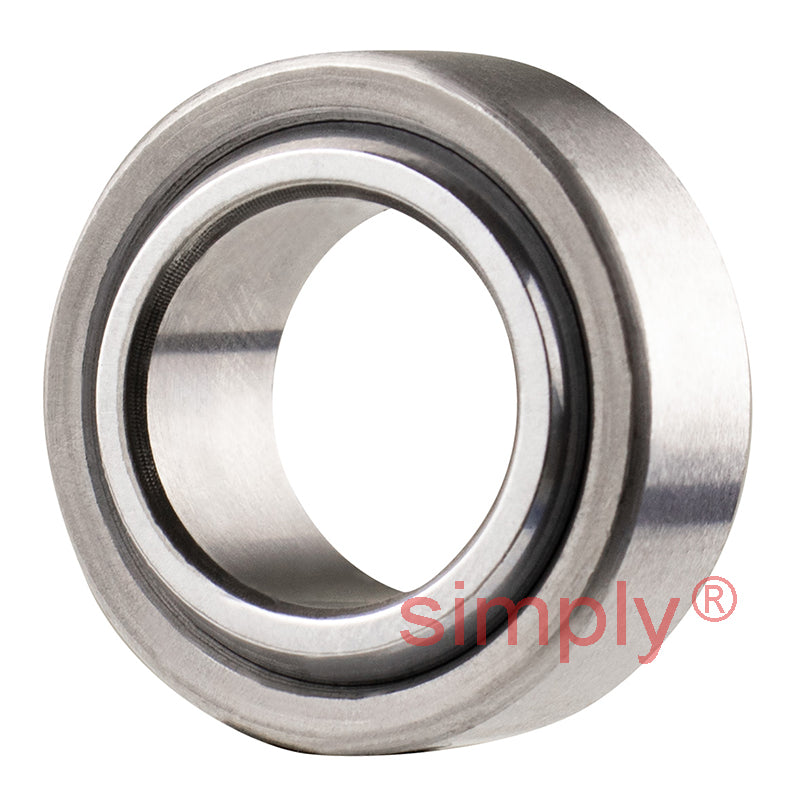

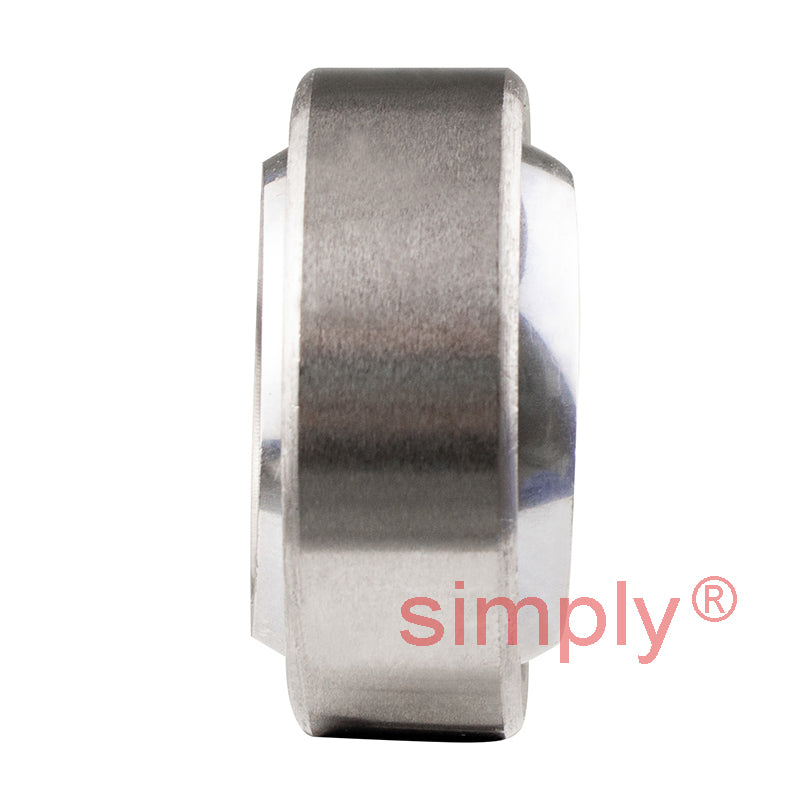

GE15UK Steel / PTFE Spherical Plain Bearing 15x26x12x9mm
- Regular price
- €7,21 ex VAT
- Sale price
- €7,21
- Regular price
-
In stock
Quantity Price Breaks
10+
€6,42
19+
€6,06
29+
€5,98
39+
€5,91
49+
€5,84
74+
€5,77
99+
€5,41
199+
€5,34
249+
€5,26
499+
€5,19
999+
€5,05
SKU:
GE15UK-EU
GE15UK Steel / PTFE Spherical Plain Bearing 15x26x12x9mm
- Regular price
- €7,21 ex VAT
- Sale price
- €7,21
- Regular price
-
Description
GE..-UK Series Spherical Plain Bearings: These maintenance-free spherical plain bearings are suitable for high load appliations where there is limited oscillating movement.
Technical
| d | = | 15mm (Tolerance: 0/-0.008) |
| D | = | 26mm (Tolerance: 0/-0.009) |
| B | = | 12mm (Tolerance: 0/-0.12) |
| Radial internal clearance | = | 0-0.04mm |
| C | = | 9mm (Tolerance: 0/-0.24) |
| Da min | = | 21mm |
| da max | = | 18.4mm |
| dk | = | 22mm |
| Chamfer dimension r1s min | = | 0.3mm |
| Chamfer dimension r2s min | = | 0.3mm |
| a | = | 8& |
| deg | = | |
| Mass | = | 0.027 kg |
| Basic dynamic load, radial Cr | = | 17800 N |
| Basic static load, rating Cor | = | 44600 N |
