SKU: GA12-FLURO

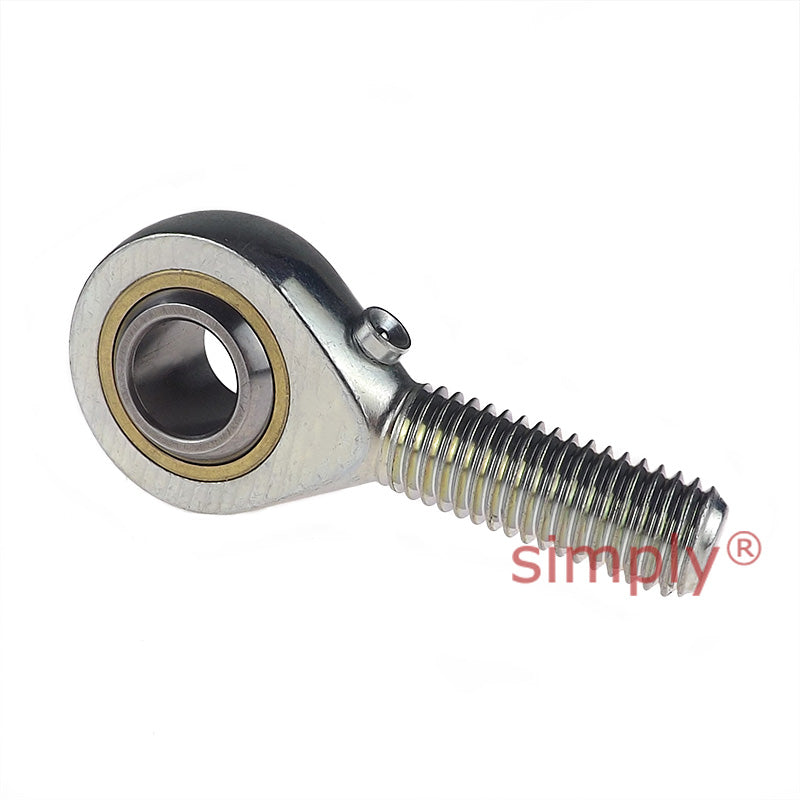

Fluro GA12 Right Hand Steel / Brass Male Plain Rod End M12 Thread
- Regular price
- €22,30 ex VAT
- Sale price
- €22,30
- Regular price
-
In stock
Quantity Price Breaks
3
€19,85
5
€18,73
9
€18,51
19
€18,29
49
€18,06
74
€17,84
99
€16,73
199
€16,50
249
€16,28
499
€16,06
999
€15,61
SKU:
GA12-FLURO
Fluro GA12 Right Hand Steel / Brass Male Plain Rod End M12 Thread
- Regular price
- €22,30 ex VAT
- Sale price
- €22,30
- Regular price
-
Description
Fluro GA Series Steel / Brass Maintenance Required Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel. Zinc plated and fitted with a grease nipple. Especially suited for axial loads.
Benefits: Grease nipple for easy re-greasing

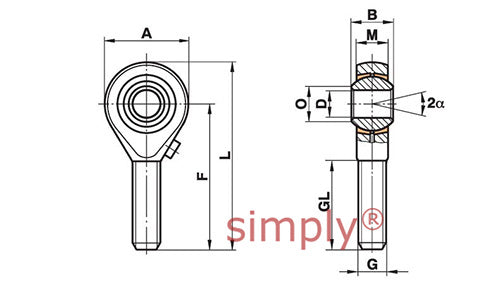

Technical
| Bore Size D | = | 12mm |
| B | = | 16mm |
| M | = | 12mm |
| A | = | 32mm |
| F | = | 57mm |
| L | = | 70mm |
| O | = | 15.4mm |
| Thread Size G | = | M12 |
| GL | = | 32mm |
| Static Load Co | = | 25.5kN |
| Dynamic Load | = | 10kN |
| Limiting Speed | = | 450rev/min |
| Approx weight | = | 0.087kg |
