SKU: FYT1.11/16TF-SKF

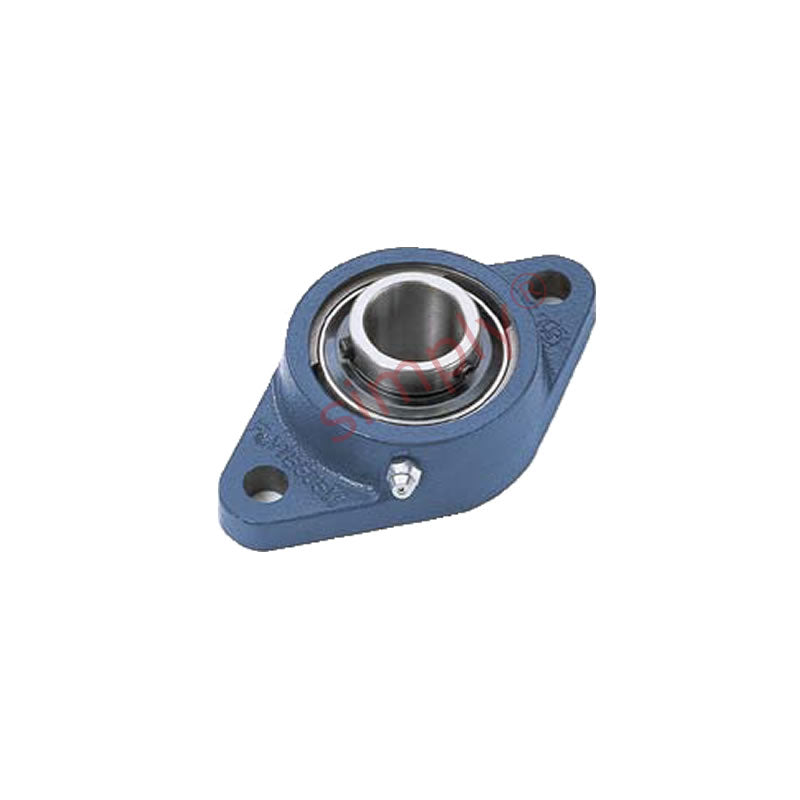

SKF FYT1-11/16TF Oval Cast Housing with Grub Screw 1-11/16 inch Insert
SKF FYT1-11/16TF Oval Cast Housing with Grub Screw 1-11/16 inch Insert
Regular price
€111,05
ex VAT
Regular price
Sale price
€111,05
ex VAT
In stock
Price Break
10+
€84,39
20+
€79,65
30+
€78,70
40+
€77,75
50+
€76,80
75+
€75,86
100+
€71,11
200+
€70,17
250+
€69,22
500+
€68,27
1000+
€66,37
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- FYT
- Bolt Hole Centres:
- 148.4mm

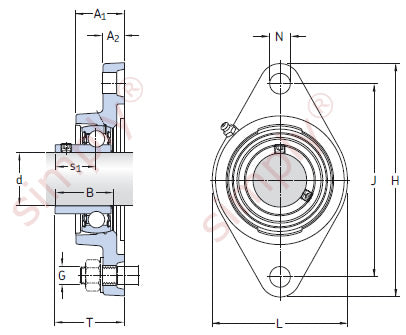

Technical
Technical
| d | 1-11/16 inch |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| H | 178.5mm |
| J | 148.4mm |
| L | 111mm |
| N | 15.9mm |
| G | 14mm |
| s1 | 30.2mm |
| T | 54.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 1.86 kg |
| Housing | Insert |
