SKU: FY1.3/16TF-SKF

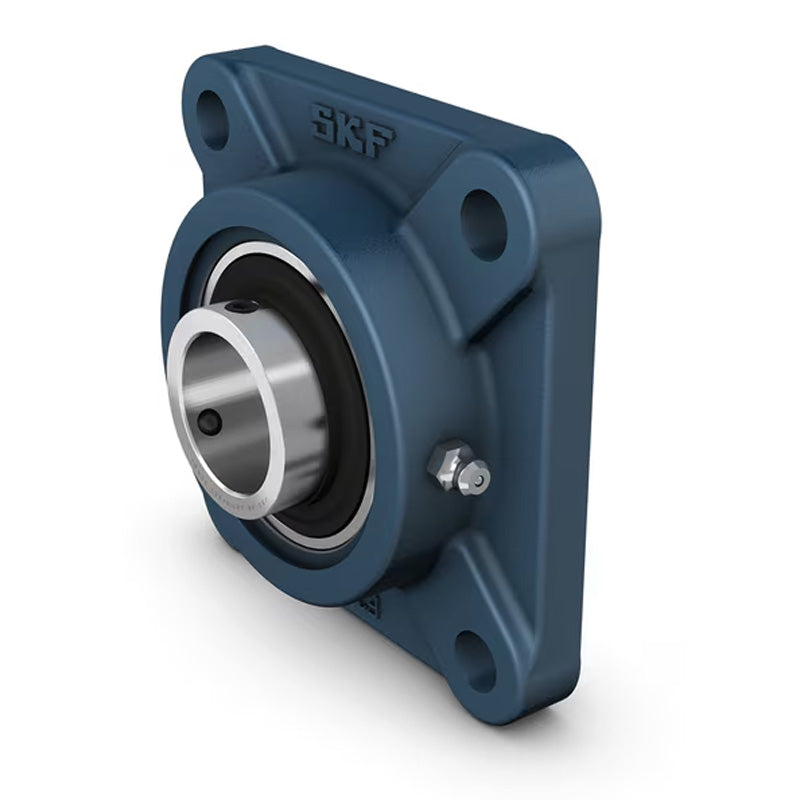

SKF FY1-3/16TF Square Cast Housing with Grub Screw 1-3/16 inch Insert
SKF FY1-3/16TF Square Cast Housing with Grub Screw 1-3/16 inch Insert
Regular price
€69,17
ex VAT
Regular price
Sale price
€69,17
ex VAT
In stock
Price Break
10+
€52,56
20+
€49,61
30+
€49,02
40+
€48,43
50+
€47,84
75+
€47,25
100+
€44,29
200+
€43,70
250+
€43,11
500+
€42,52
1000+
€41,34
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- FY
- Bolt Hole Centres:
- 82.5mm

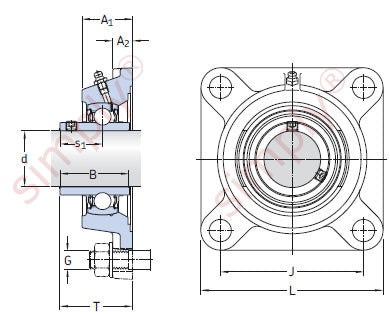

Technical
Technical
| d | 1-3/16 inch |
|---|---|
| A1 | 32.5mm |
| A2 | 13mm |
| B | 38.1mm |
| J | 82.5mm |
| L | 108mm |
| G | 10mm |
| s1 | 22.2mm |
| T | 42.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 1.1 kg |
| Housing | Insert |
