SKU: FL16-PBC

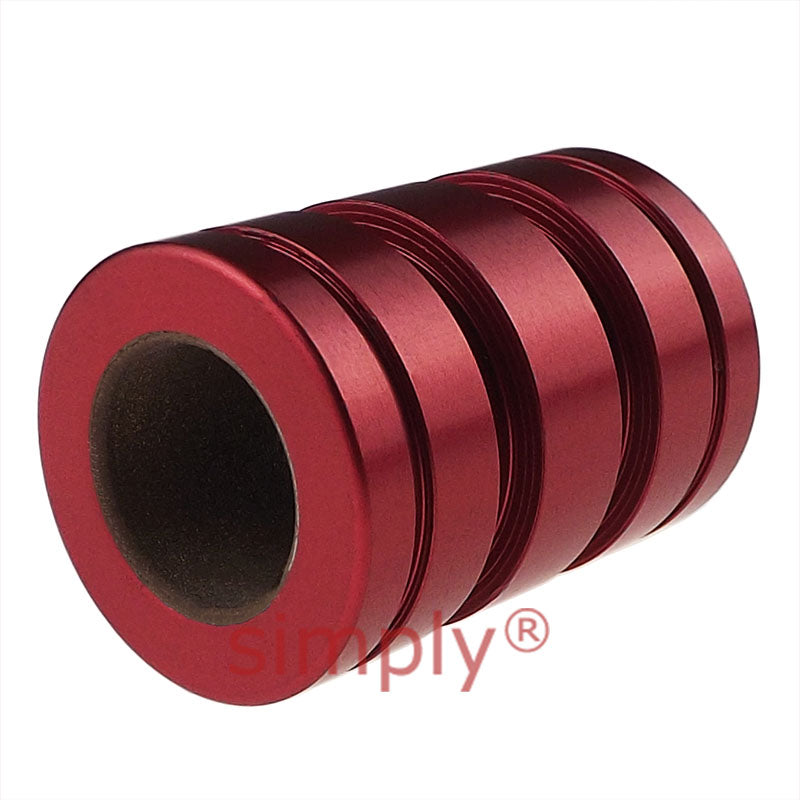

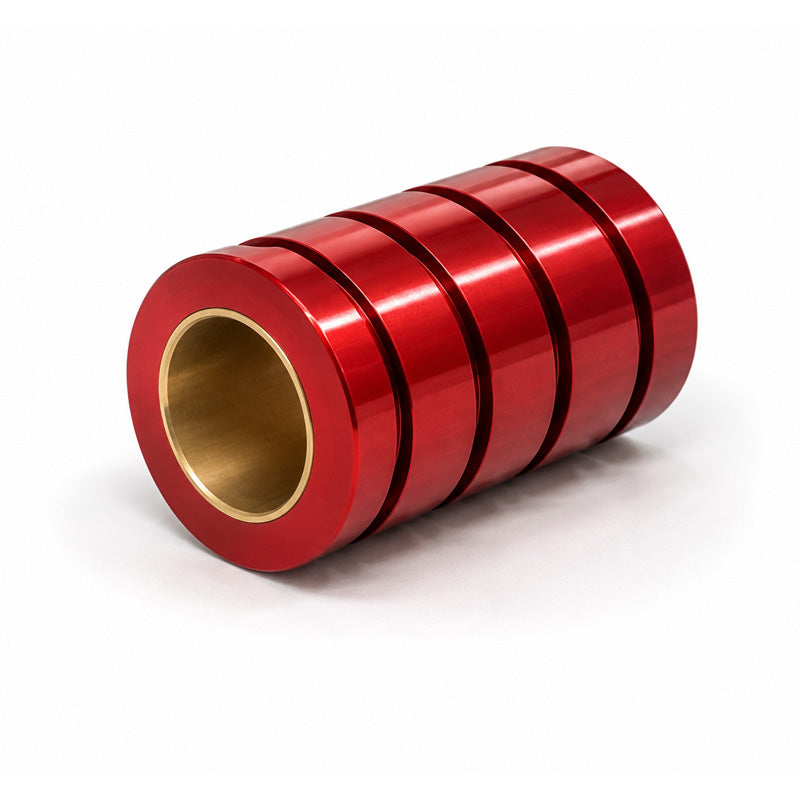

PBC FL 16 Imperial Closed Precision Linear Plain Bearings with Frelon Gold 1x1.563x2.25 inch (Allow 2-3 Days)
- Regular price
- €75,68 ex VAT
- Sale price
- €75,68
- Regular price
-
Not in stock
Quantity Price Breaks
3
€67,36
5
€63,57
9
€62,81
19
€62,06
49
€61,30
74
€60,54
99
€56,76
199
€56,00
249
€55,25
499
€54,49
999
€52,98
SKU:
FL16-PBC
PBC FL 16 Imperial Closed Precision Linear Plain Bearings with Frelon Gold 1x1.563x2.25 inch (Allow 2-3 Days)
- Regular price
- €75,68 ex VAT
- Sale price
- €75,68
- Regular price
-
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C

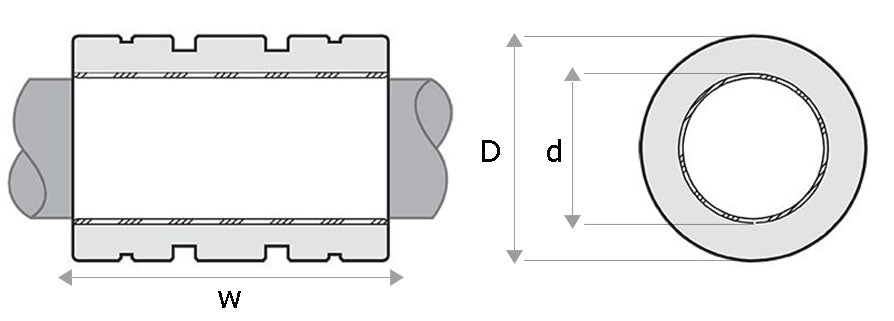

Technical
| Inside Diameter | = | 25.4mm = 1 inch |
| Outside Diameter | = | 39.69mm = 1.563 (1-9/16) inch |
| Width | = | 57.15mm = 2.25 (2-1/4) inch |
| Nominal Bore Size | = | 1 inch |
| Effective Surface Area (Square Inch) | = | 2.35kg |
| Max Static Load | = | 31.33kN |
| Weight | = | 0.103kg |
