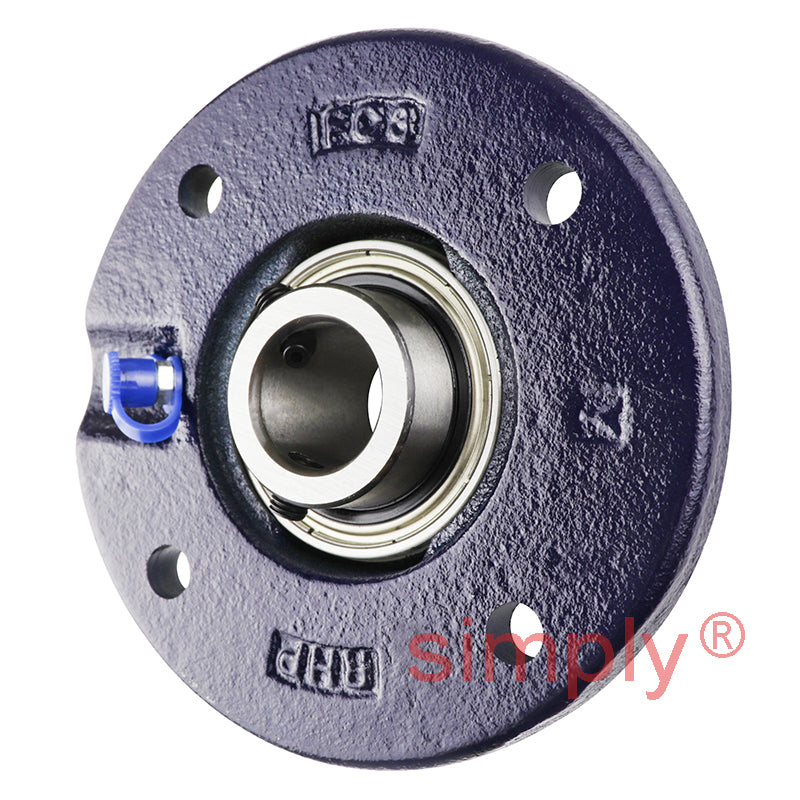

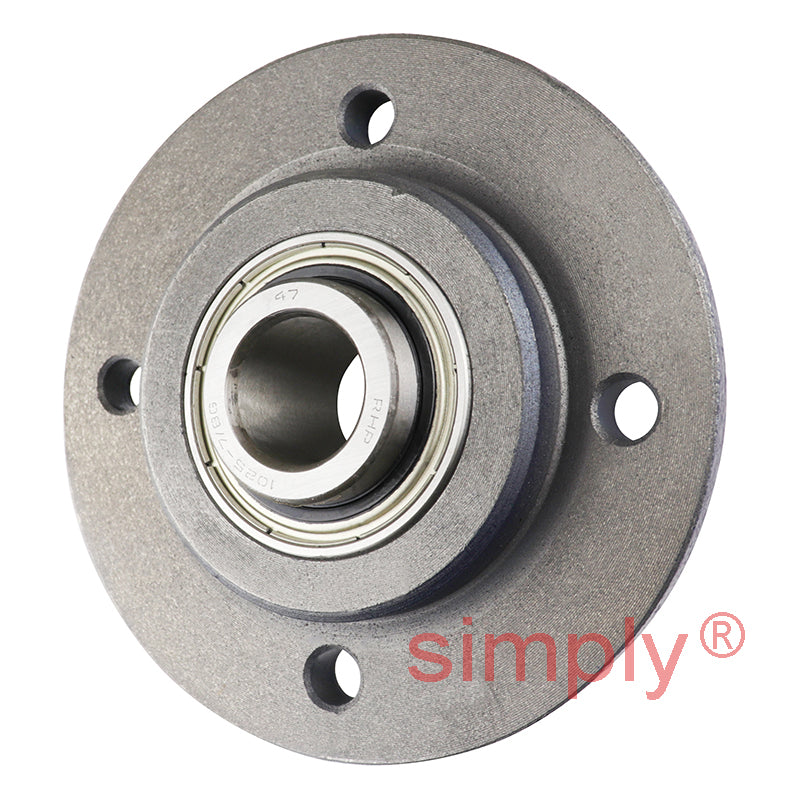

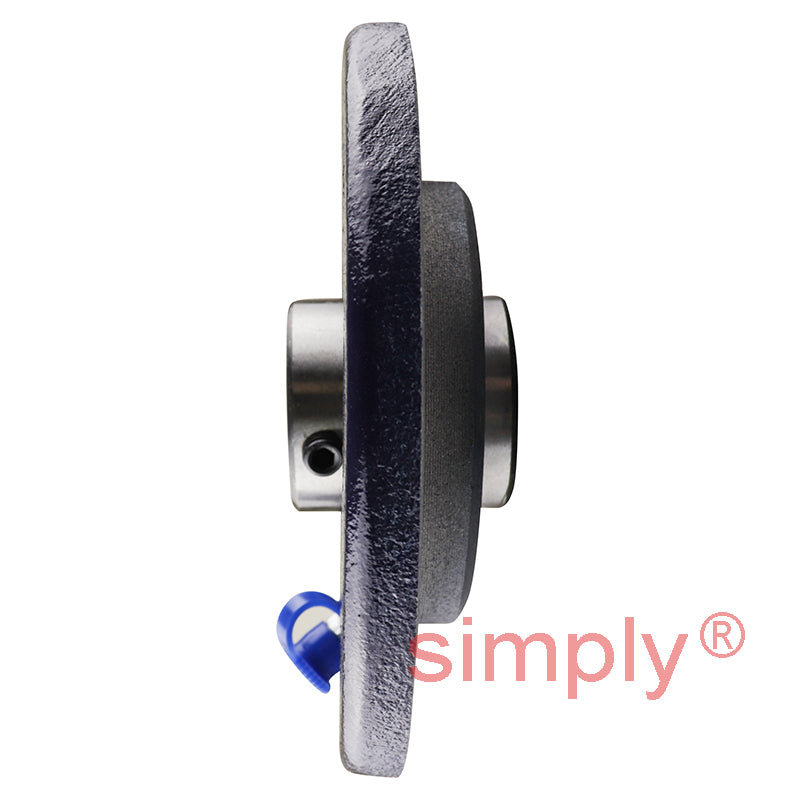

RHP FC7/8-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 7/8 inch Insert
RHP FC7/8-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 7/8 inch Insert
Regular price
€56,04
ex VAT
Regular price
Sale price
€56,04
ex VAT
In stock
Price Break
10+
€42,58
20+
€40,19
30+
€39,71
40+
€39,24
50+
€38,76
75+
€38,28
100+
€35,89
200+
€35,41
250+
€34,93
500+
€34,45
1000+
€33,49
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- FC
- Pitch Circle Diameter:
- 89.99mm = 3.543 inch

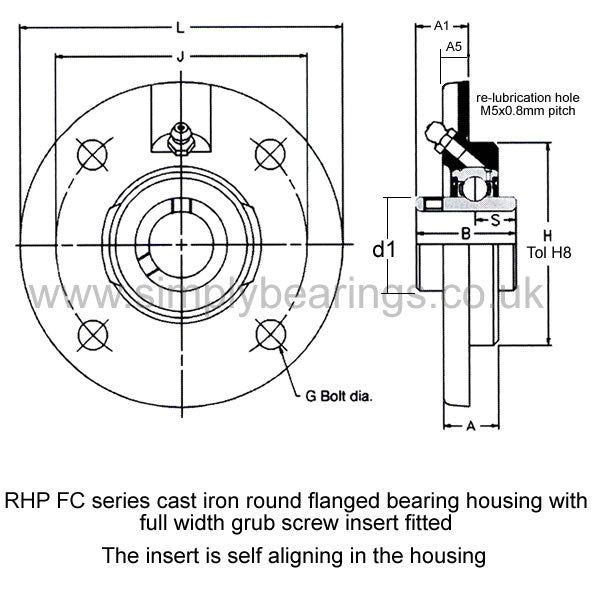

Technical
Technical
| Bore | 7/8 inch |
|---|---|
| L | 4.528 inch |
| H | 2.756 inch |
| J | 3.543 inch |
| G | 0.3125 inch |
| A | 0.748 inch |
| A1 | 0.683 inch |
| A5 | 0.354 inch |
| B | 1.343 inch |
| s | 0.564 inch |
| d1 | 1.339 inch |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-7/8G+insonly">1025-7/8G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
