SKU: FC50EC-RHP
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
Regular price
€113,74
ex VAT
Regular price
Sale price
€113,74
ex VAT
In stock
Price Break
10+
€86,44
20+
€81,58
30+
€80,61
40+
€79,64
50+
€78,67
75+
€77,70
100+
€72,84
200+
€71,87
250+
€70,90
500+
€69,93
1000+
€67,99
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|

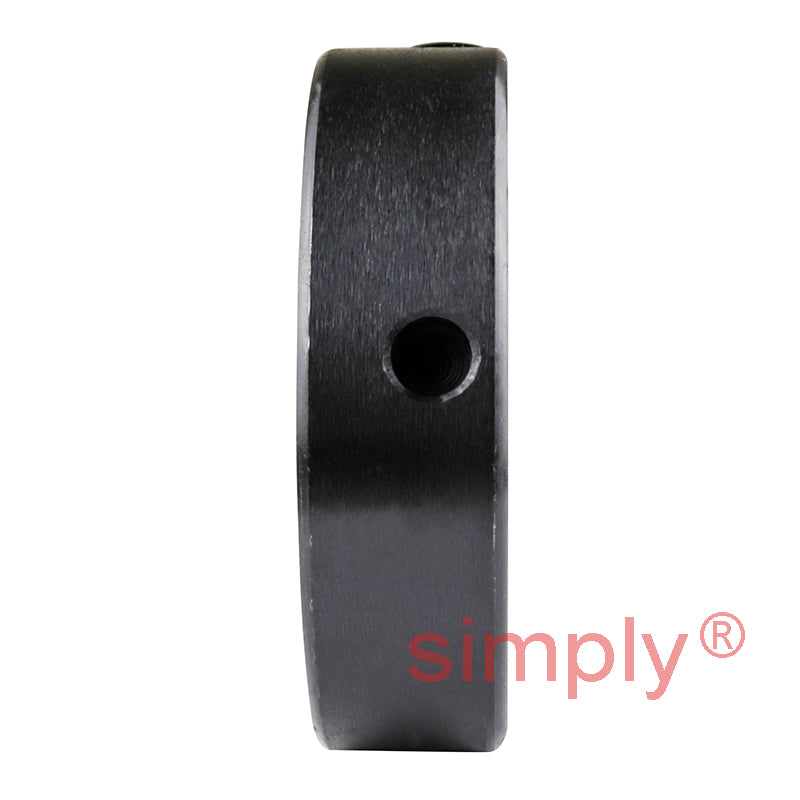

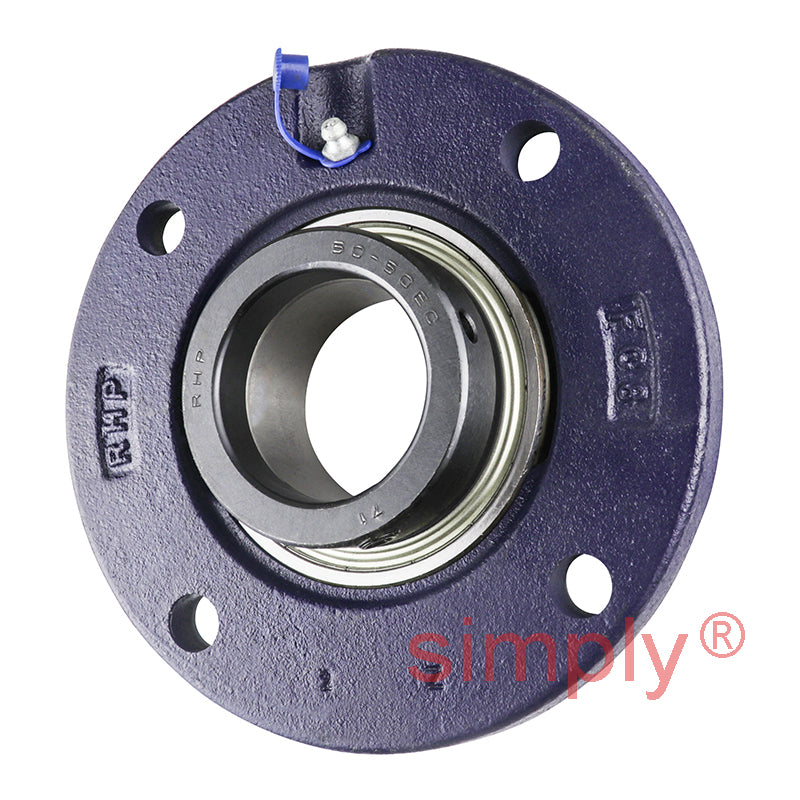

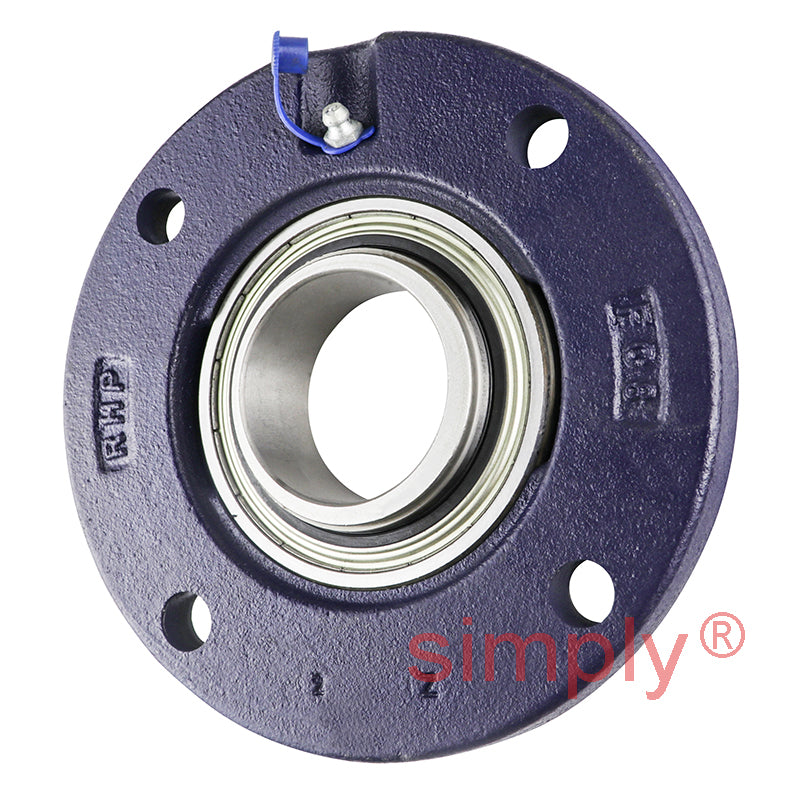

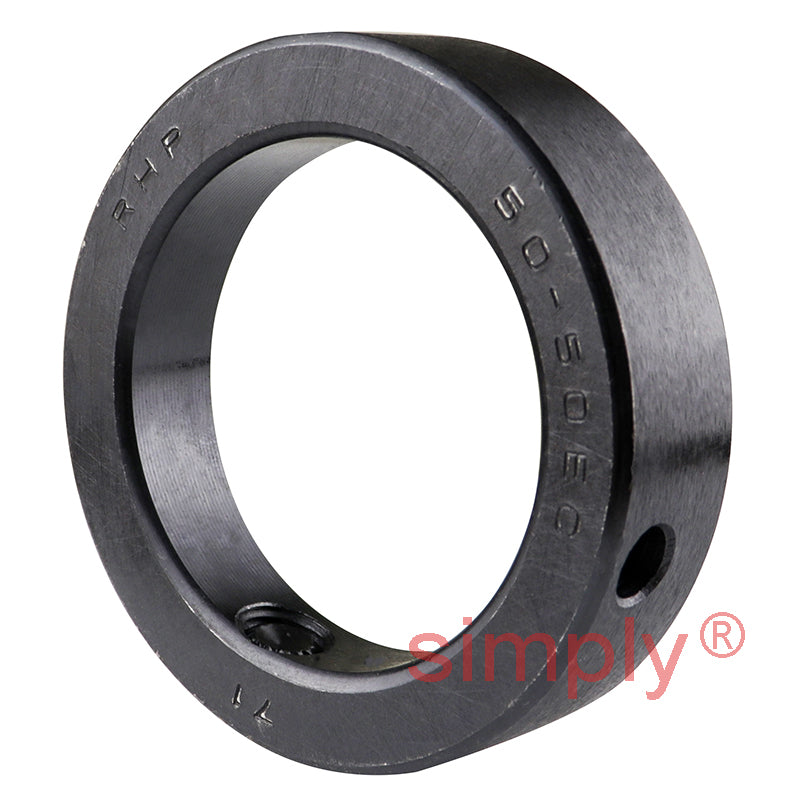

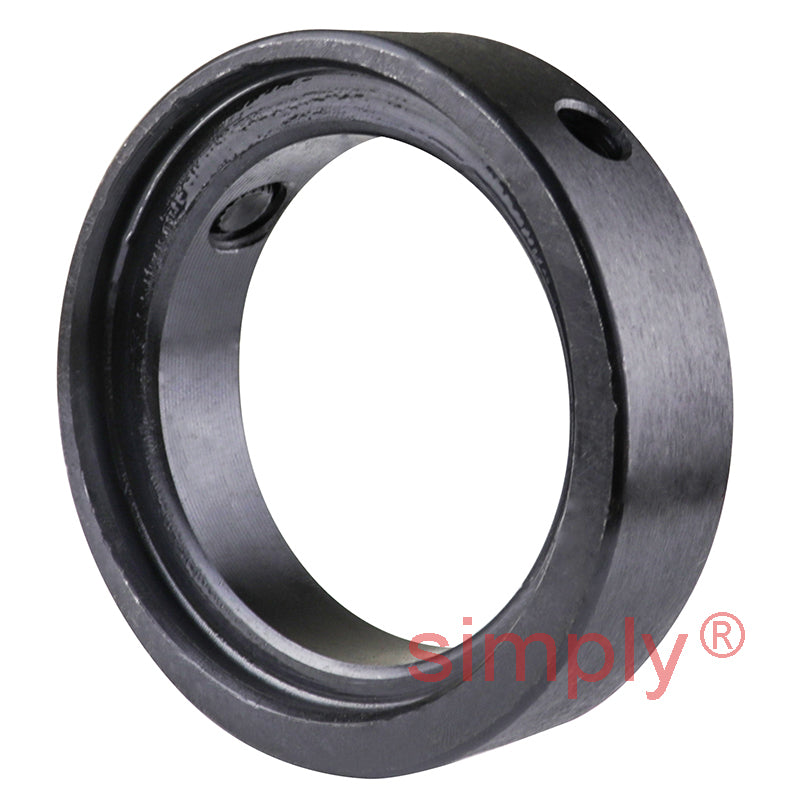

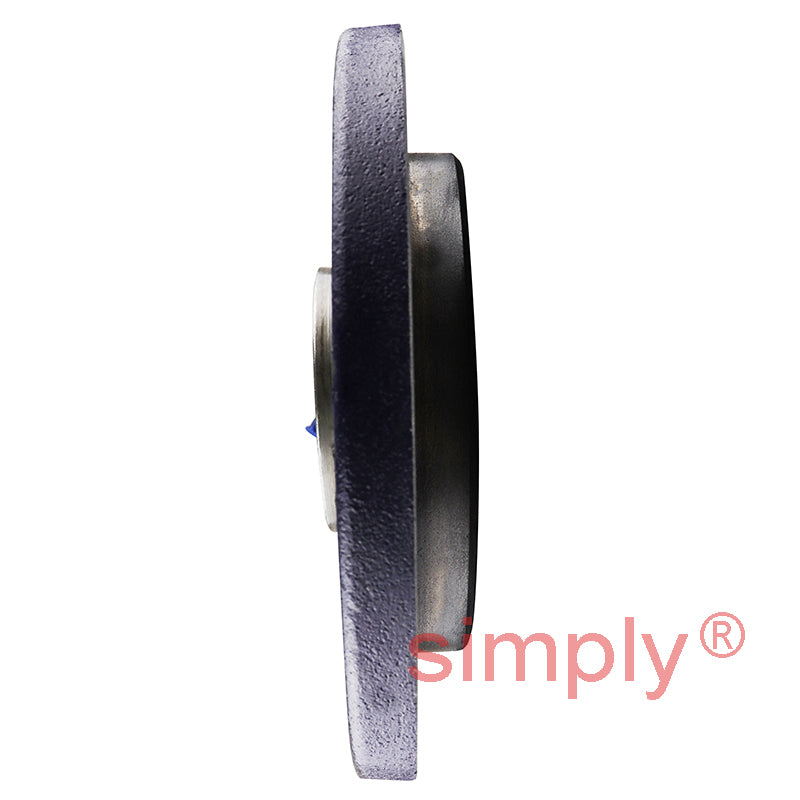

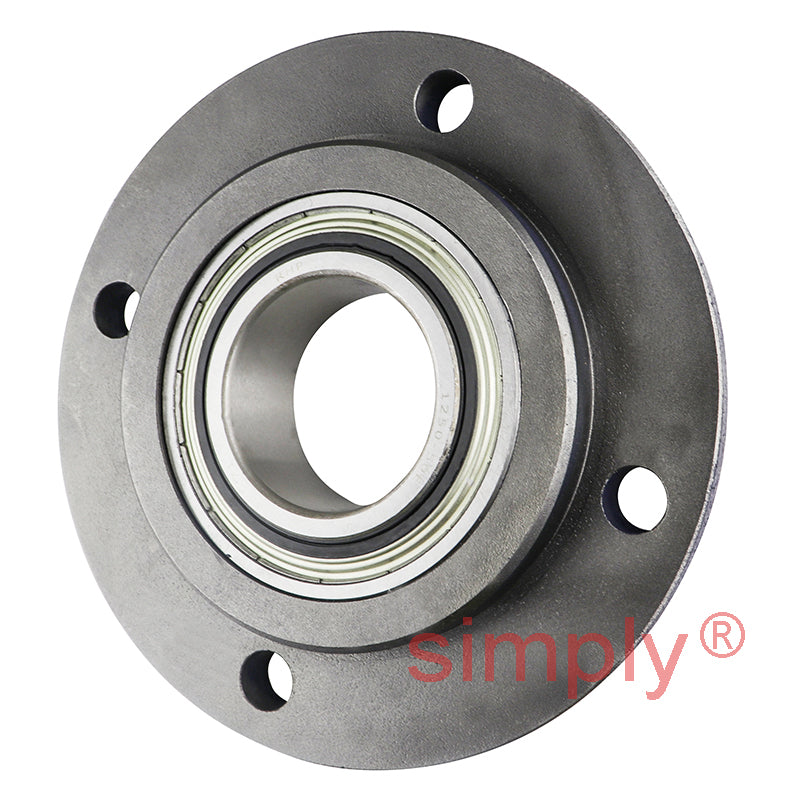

RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- FC
- Pitch Circle Diameter:
- 135mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 165mm |
| H | 110mm |
| J | 135mm |
| G | 12mm |
| A | 25mm |
| A2 | 31.63mm |
| A5 | 13mm |
| B2 | 43.73mm |
| s2 | 24.64mm |
| d2 | 69.85mm |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1250-50ECG+insonly">1250-50ECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
