SKU: FC50DEC-RHP

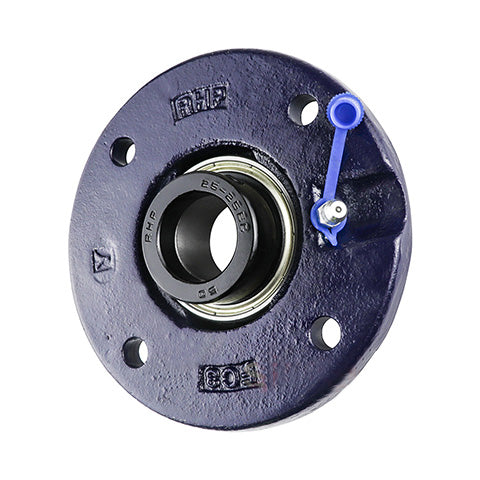

RHP FC50DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
Regular price
€124,09
ex VAT
Regular price
Sale price
€124,09
ex VAT
In stock
Price Break
10+
€94,30
20+
€89,00
30+
€87,94
40+
€86,88
50+
€85,83
75+
€84,77
100+
€79,47
200+
€78,41
250+
€77,35
500+
€76,29
1000+
€74,17
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- FC
- Pitch Circle Diameter:
- 135mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 165mm |
| H | 110mm |
| J | 135mm |
| G | 12mm |
| A | 25mm |
| A3 | 37.14mm |
| A5 | 13mm |
| B3 | 62.73mm |
| s2 | 24.64mm |
| d2 | 69.85mm |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-50DECG+insonly">1050-50DECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
