SKU: FC45EC-RHP

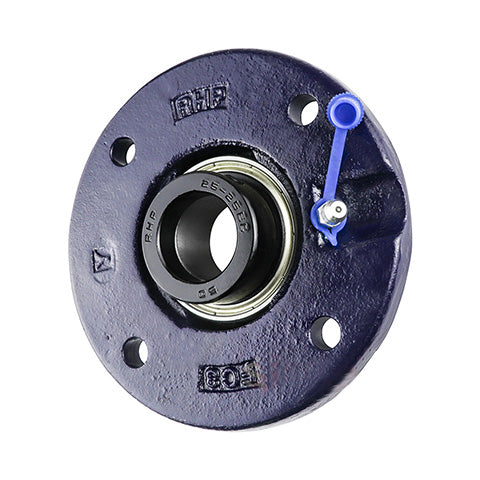

RHP FC45EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
RHP FC45EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
Regular price
€104,82
ex VAT
Regular price
Sale price
€104,82
ex VAT
In stock
Price Break
10+
€79,66
20+
€75,18
30+
€74,29
40+
€73,39
50+
€72,50
75+
€71,60
100+
€67,13
200+
€66,23
250+
€65,34
500+
€64,44
1000+
€62,65
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- FC
- Pitch Circle Diameter:
- 130mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 155mm |
| H | 105mm |
| J | 130mm |
| G | 12mm |
| A | 25mm |
| A2 | 30.59mm |
| A5 | 12mm |
| B2 | 43.64mm |
| s2 | 21.46mm |
| d2 | 63.5mm |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-45ECG+insonly">1245-45ECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
