SKU: FC45A-RHP

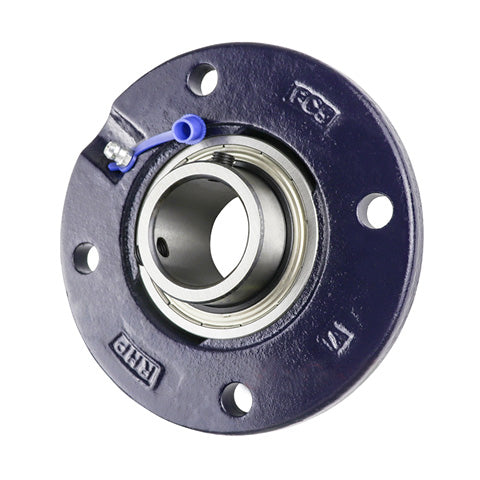

RHP FC45A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
RHP FC45A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
Regular price
€94,46
ex VAT
Regular price
Sale price
€94,46
ex VAT
In stock
Price Break
10+
€71,79
20+
€67,76
30+
€66,95
40+
€66,14
50+
€65,34
75+
€64,53
100+
€60,50
200+
€59,69
250+
€58,88
500+
€58,08
1000+
€56,46
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- FC
- Pitch Circle Diameter:
- 130mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 155mm |
| H | 105mm |
| J | 130mm |
| G | 12mm |
| A | 25mm |
| A1 | 28.18mm |
| A5 | 12mm |
| B1 | 41.18mm |
| s1 | 11.05mm |
| d1 | 57.3mm |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-45AG+insonly">1245-45AG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
