SKU: FC40-RHP

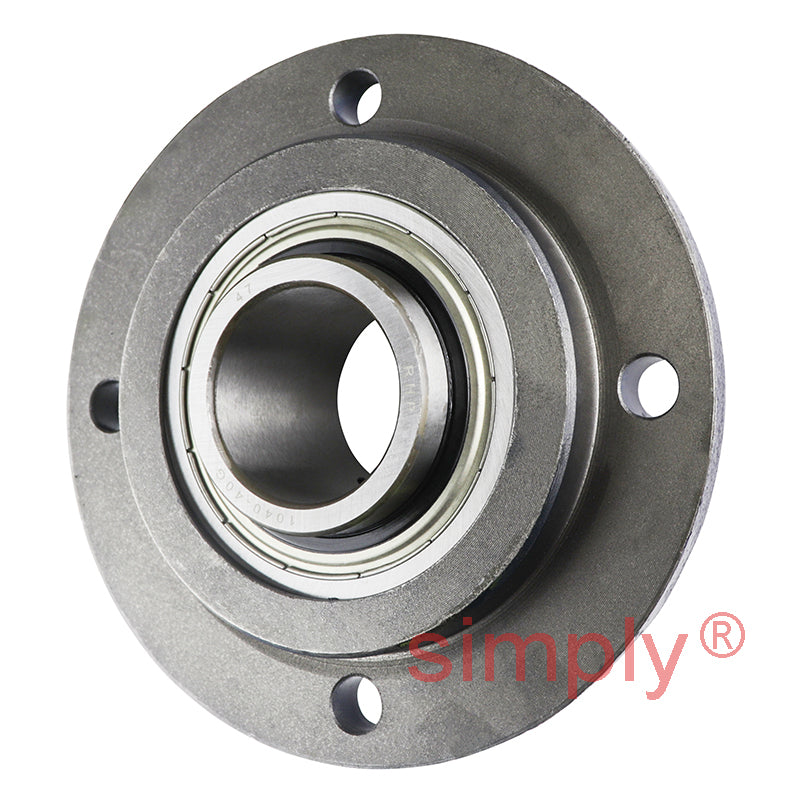

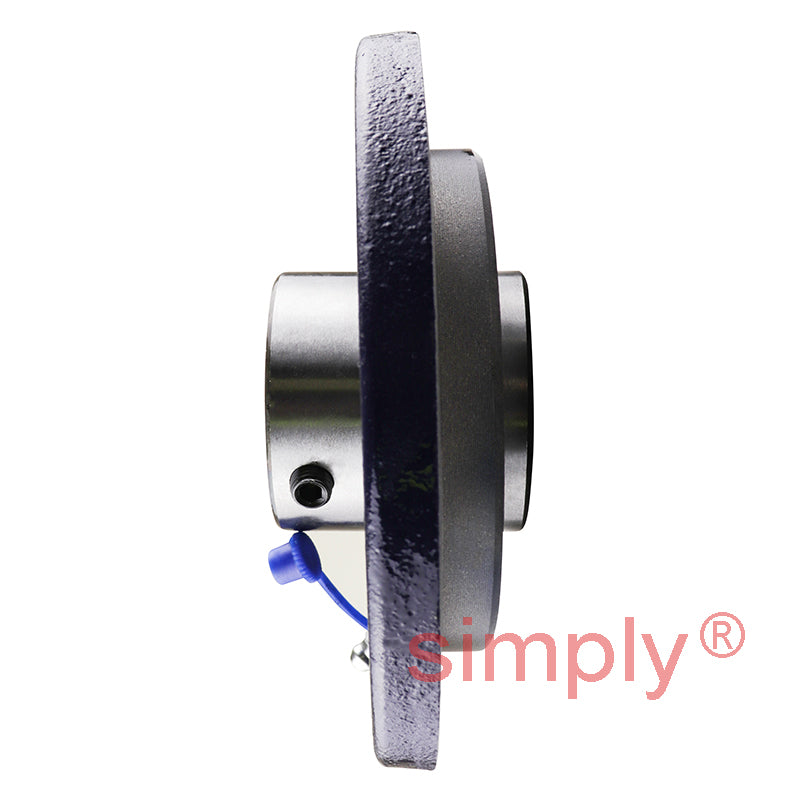

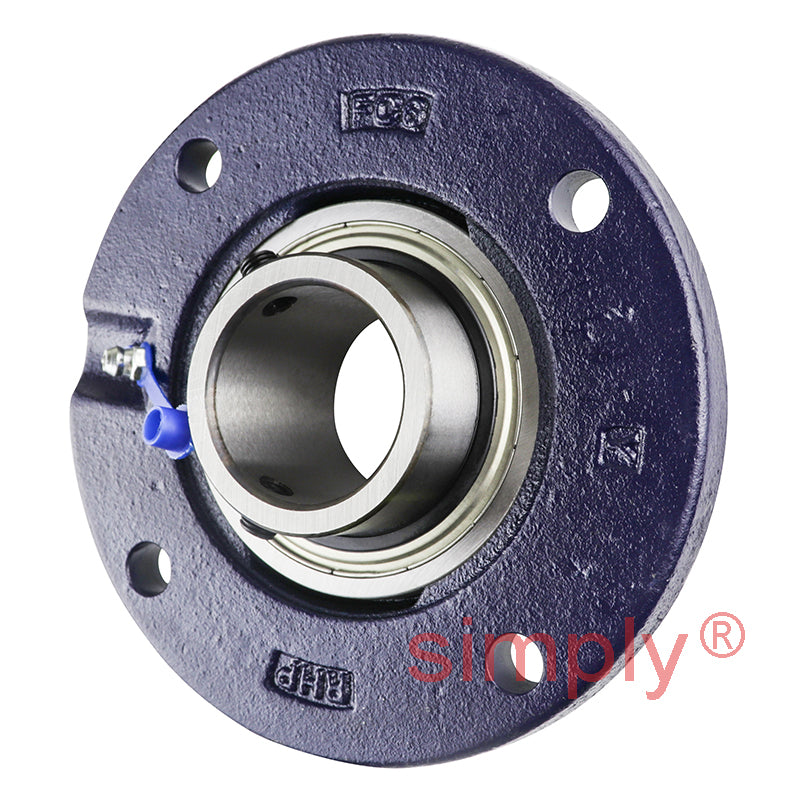

RHP FC40-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
RHP FC40-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
Regular price
€84,09
ex VAT
Regular price
Sale price
€84,09
ex VAT
In stock
Price Break
10+
€63,90
20+
€60,31
30+
€59,59
40+
€58,87
50+
€58,16
75+
€57,44
100+
€53,85
200+
€53,13
250+
€52,41
500+
€51,69
1000+
€50,26
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- FC
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 145mm |
| H | 100mm |
| J | 120mm |
| G | 10mm |
| A | 23mm |
| A1 | 29.18mm |
| A5 | 11.5mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 52.7mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
