SKU: FC35EC-RHP

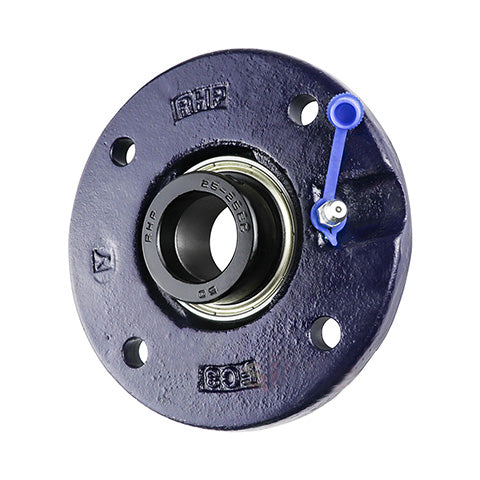

RHP FC35EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
Regular price
€75,22
ex VAT
Regular price
Sale price
€75,22
ex VAT
In stock
Price Break
10+
€57,16
20+
€53,95
30+
€53,31
40+
€52,67
50+
€52,03
75+
€51,38
100+
€48,17
200+
€47,53
250+
€46,89
500+
€46,25
1000+
€44,96
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- FC
- Pitch Circle Diameter:
- 110mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 135mm |
| H | 90mm |
| J | 110mm |
| G | 10mm |
| A | 20.5mm |
| A2 | 28.33mm |
| A5 | 10mm |
| B2 | 38.88mm |
| s2 | 18.89mm |
| d2 | 55.58mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
