SKU: FC35DEC-RHP

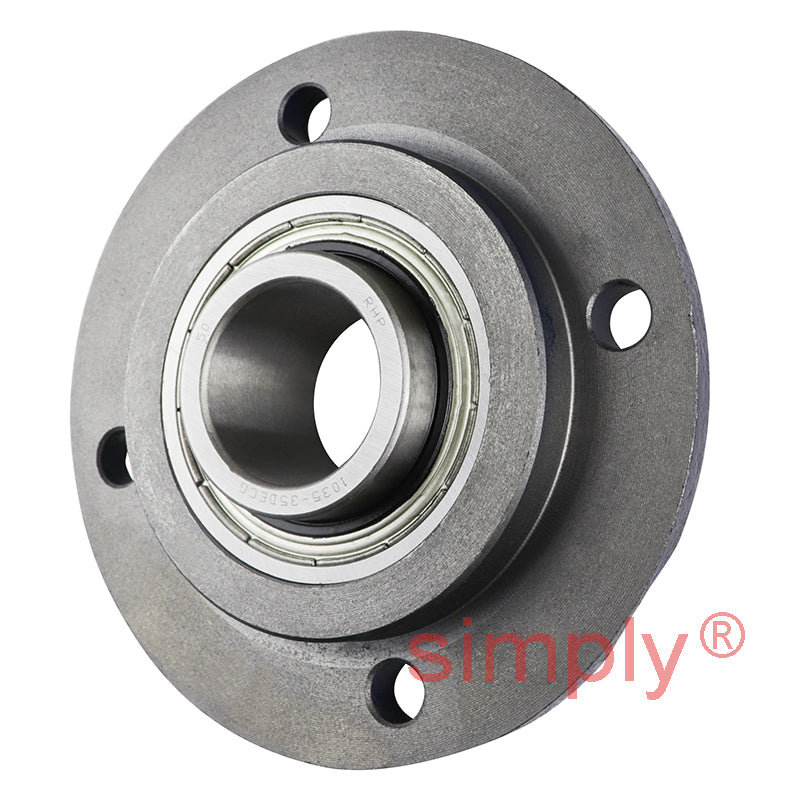

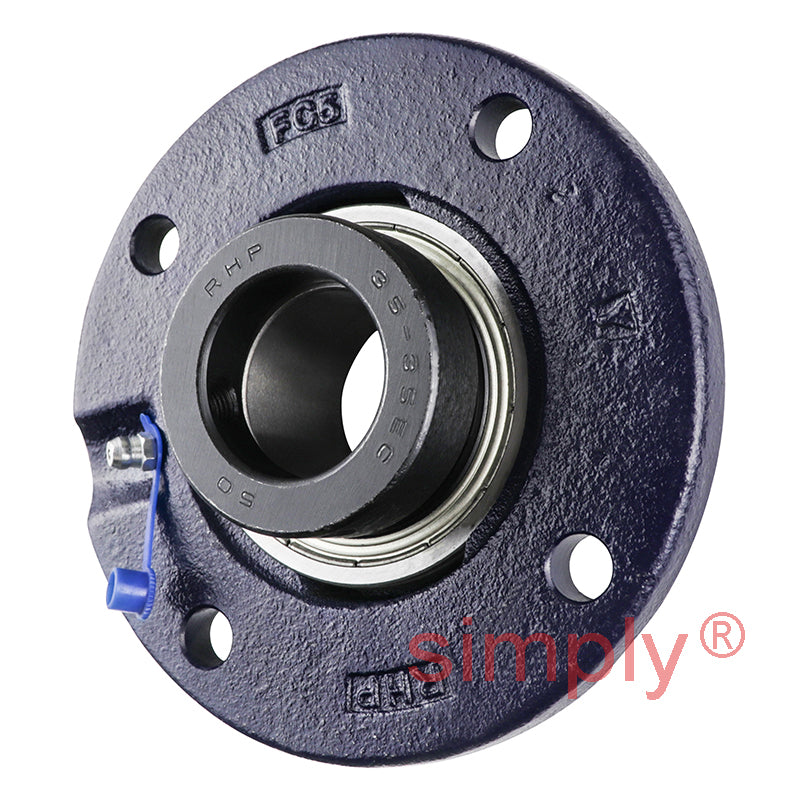

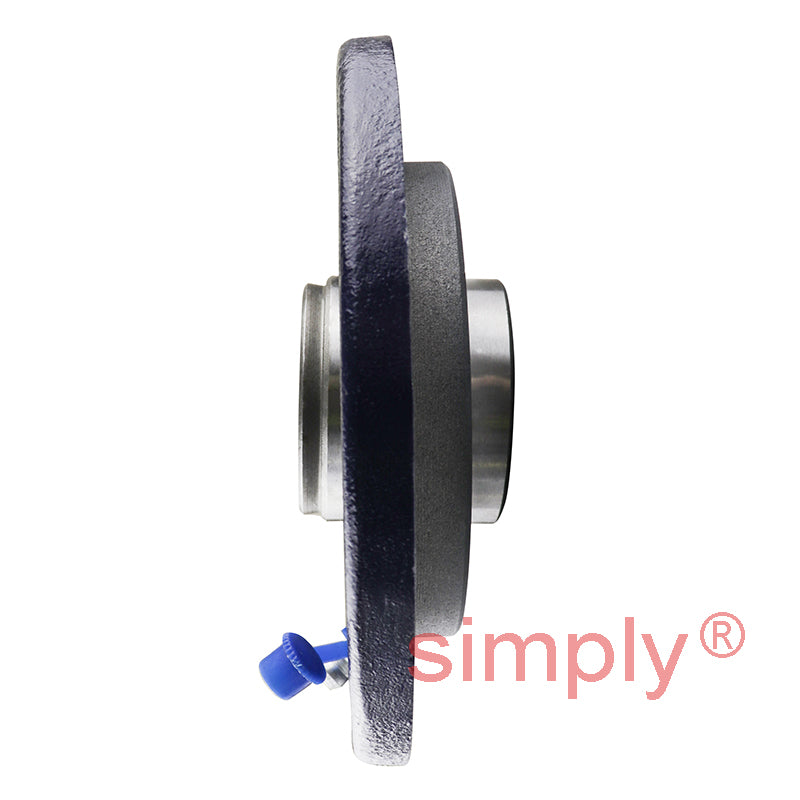

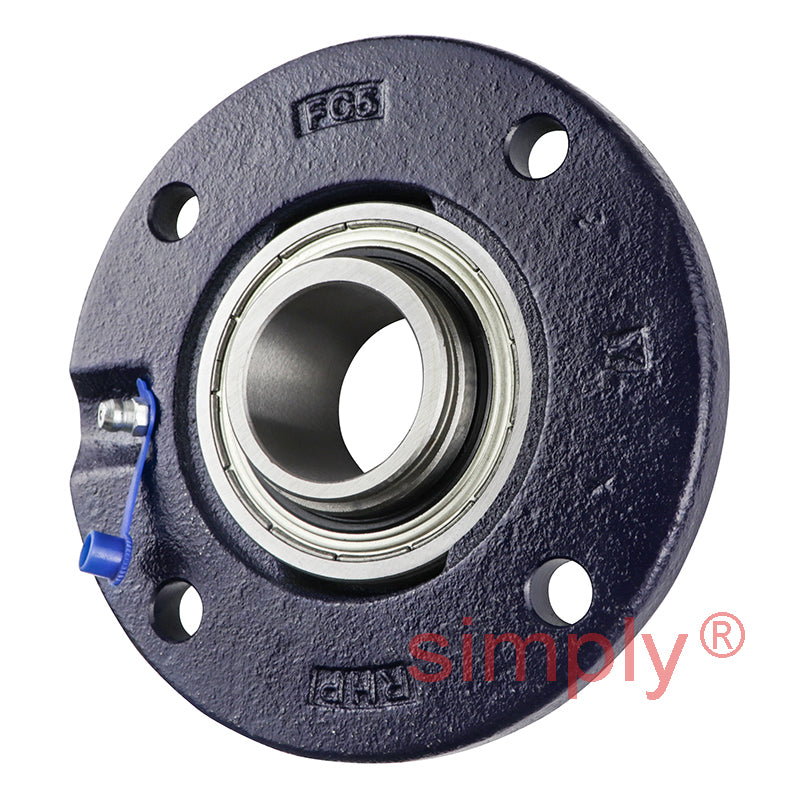

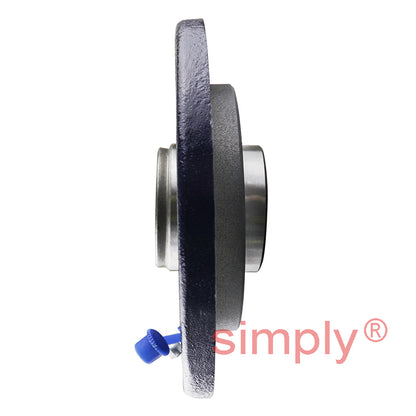

RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
Regular price
€83,44
ex VAT
Regular price
Sale price
€83,44
ex VAT
In stock
Price Break
10+
€63,41
20+
€59,85
30+
€59,14
40+
€58,43
50+
€57,71
75+
€57,00
100+
€53,44
200+
€52,73
250+
€52,01
500+
€51,30
1000+
€49,88
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|

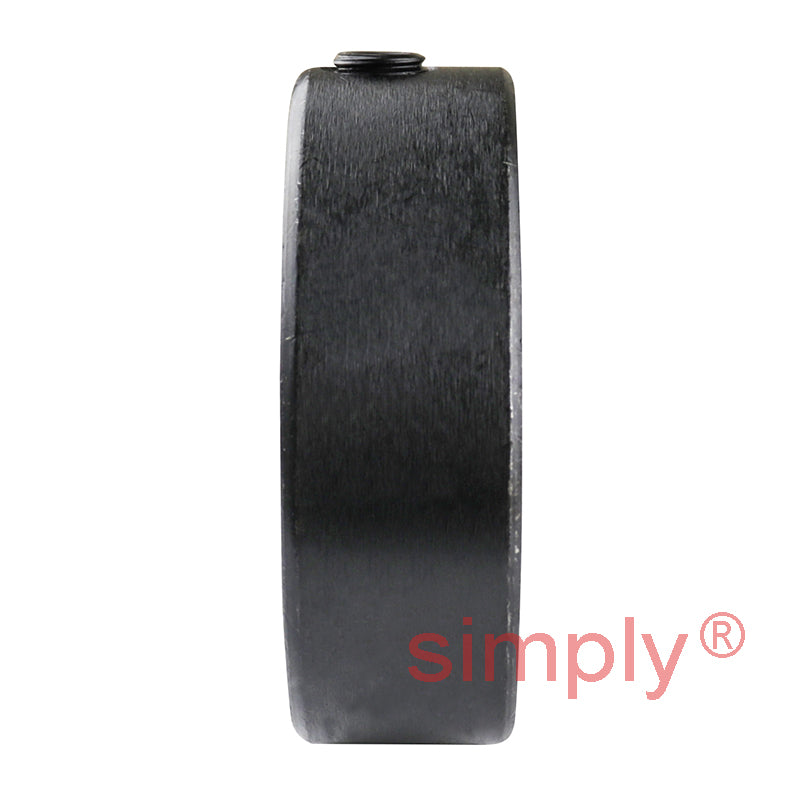

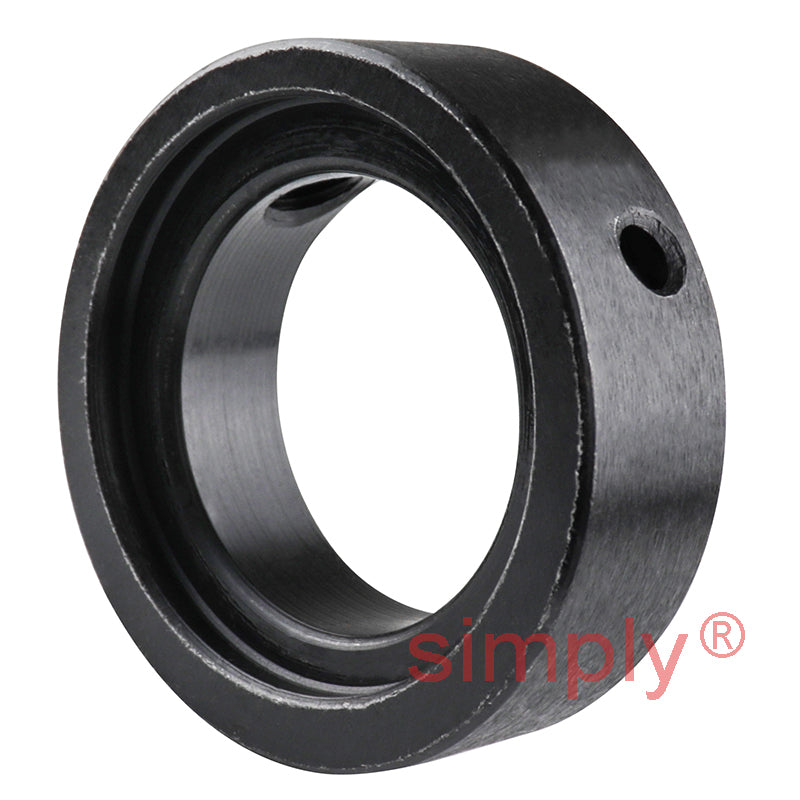

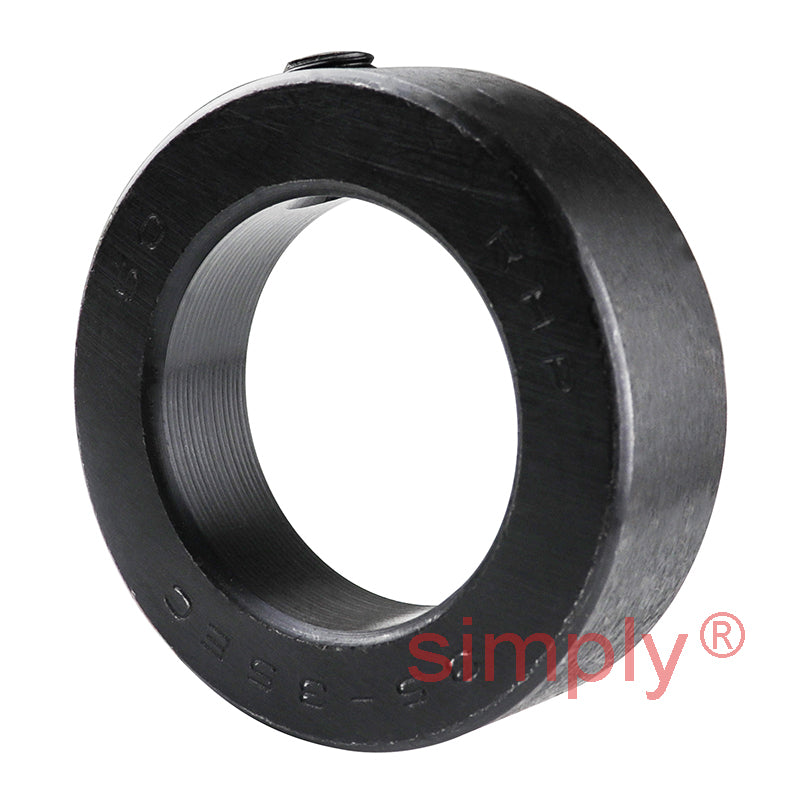

RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- FC
- Pitch Circle Diameter:
- 110mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 135mm |
| H | 90mm |
| J | 110mm |
| G | 10mm |
| A | 20.5mm |
| A3 | 31.29mm |
| A5 | 10mm |
| B3 | 51.18mm |
| s2 | 18.89mm |
| d2 | 55.58mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-35DECG+insonly">1035-35DECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
