SKU: FC30A-RHP

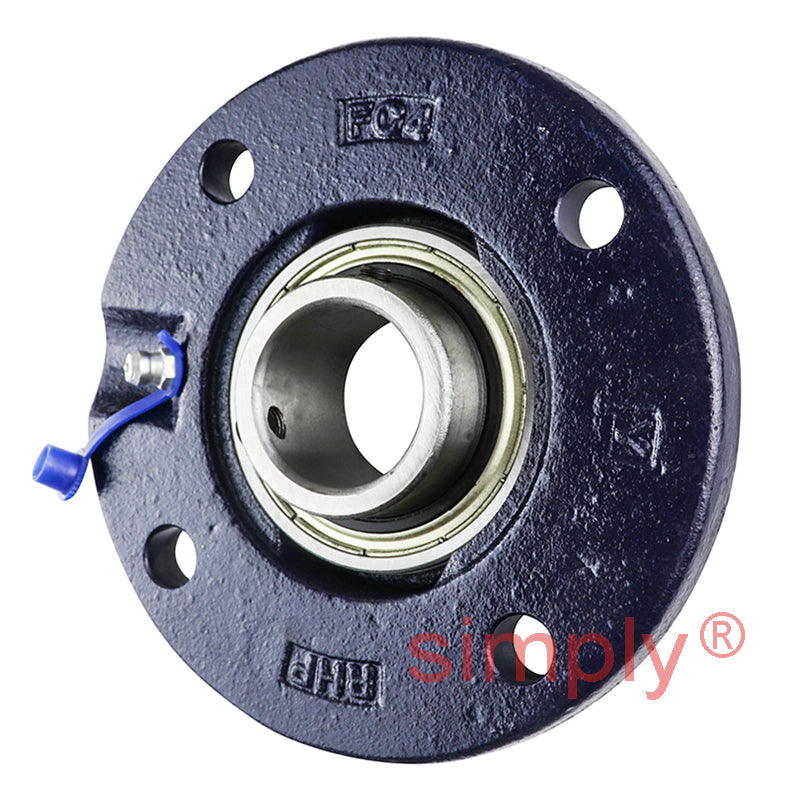

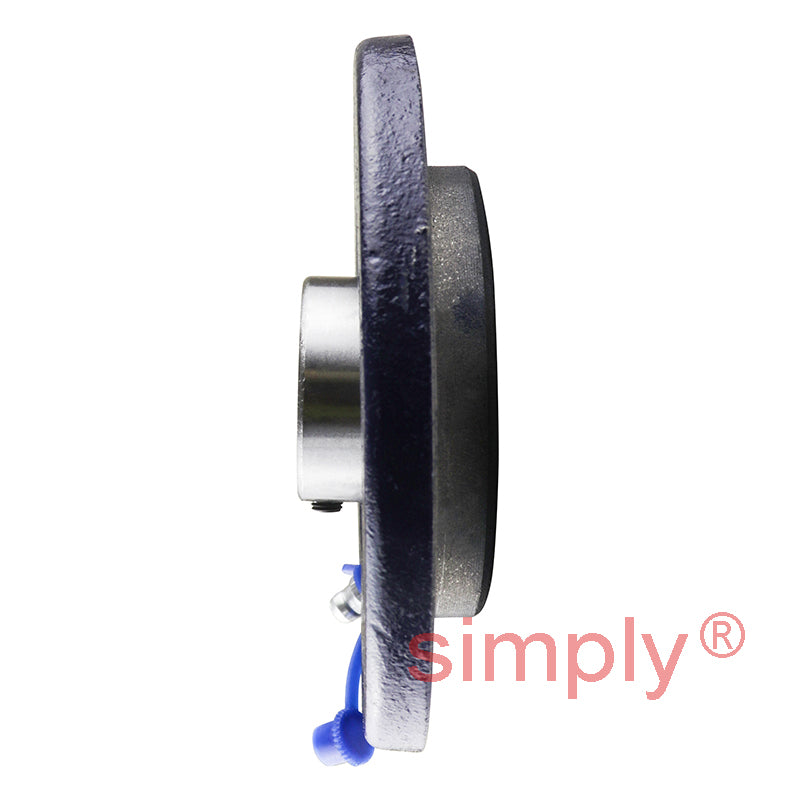

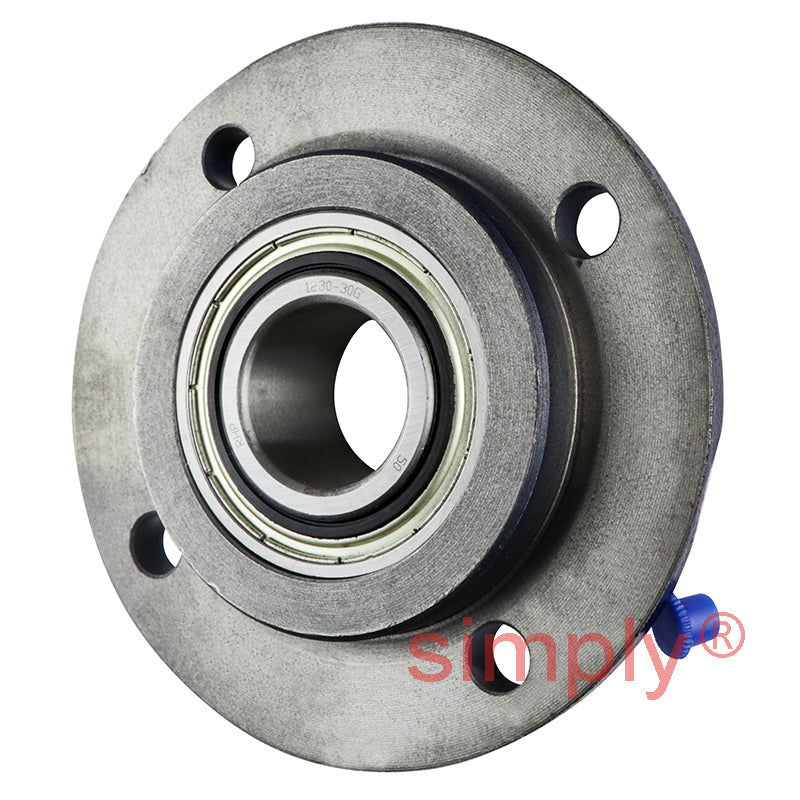

RHP FC30A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
Regular price
€62,69
ex VAT
Regular price
Sale price
€62,69
ex VAT
In stock
Price Break
10+
€47,64
20+
€44,96
30+
€44,43
40+
€43,89
50+
€43,36
75+
€42,82
100+
€40,15
200+
€39,61
250+
€39,08
500+
€38,54
1000+
€37,47
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- FC
- Pitch Circle Diameter:
- 100mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 125mm |
| H | 80mm |
| J | 100mm |
| G | 10mm |
| A | 20.5mm |
| A1 | 20.22mm |
| A5 | 9.5mm |
| B1 | 31.21mm |
| s1 | 9.04mm |
| d1 | 40mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1230-30AG+insonly">1230-30AG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
