SKU: FC30-RHP

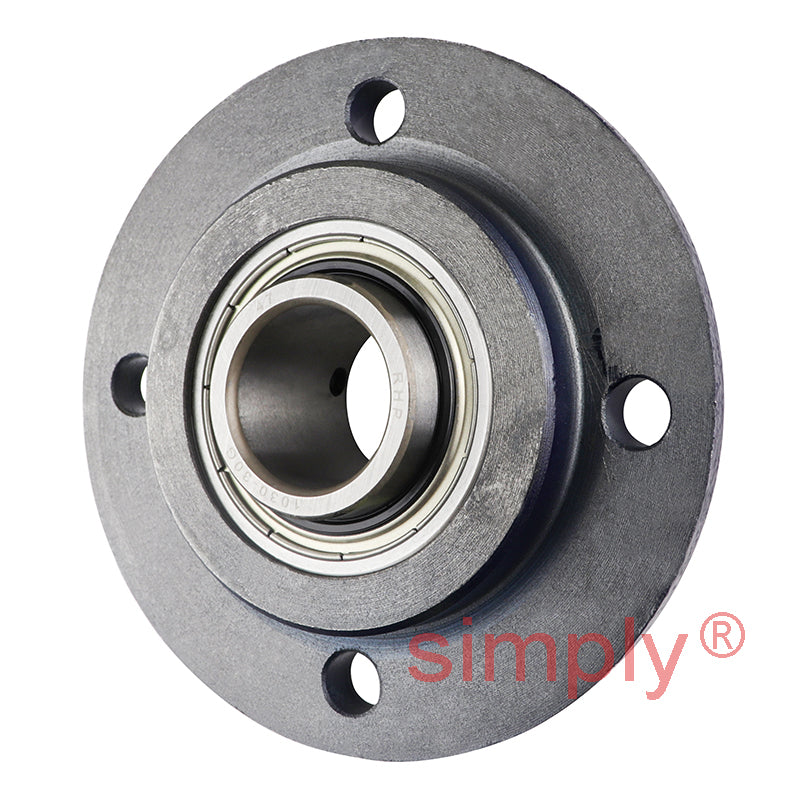

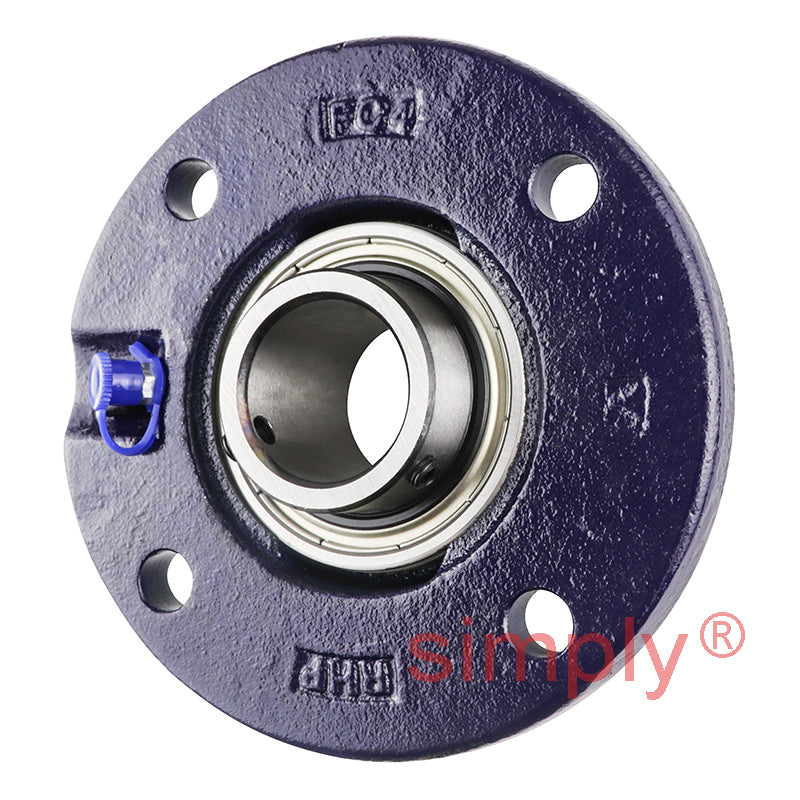

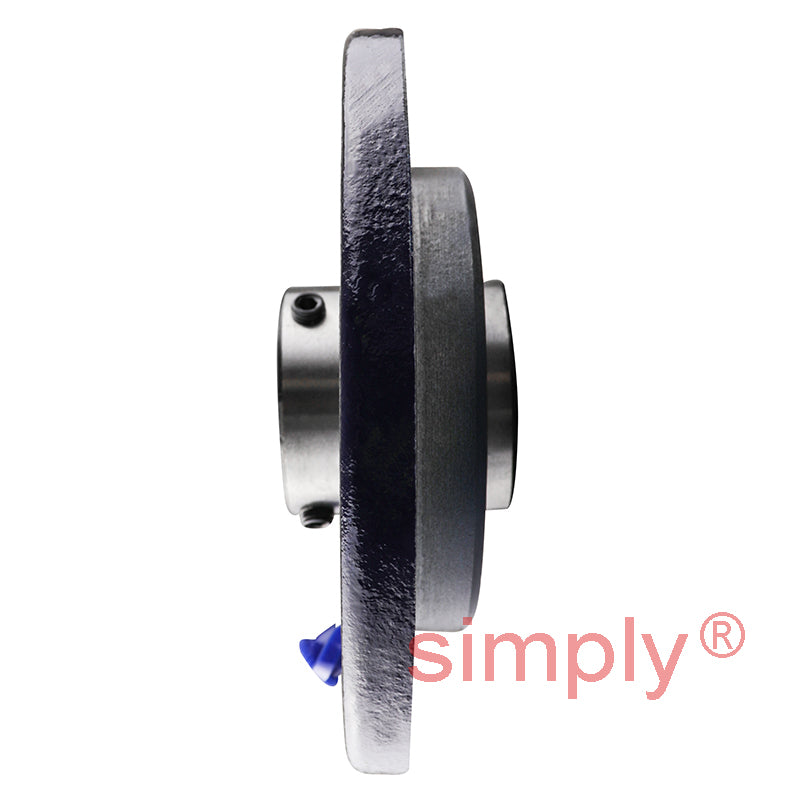

RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert

RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
Regular price €62,69 ex VAT
Regular price Sale price €62,69 ex VAT
Sale Sold out

In stock

Price Break
10+ €47,64
20+ €44,96
30+ €44,43
40+ €43,89
50+ €43,36
75+ €42,82
100+ €40,15
200+ €39,61
250+ €39,08
500+ €38,54
1000+ €37,47
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 30mm
L 125mm
H 80mm
J 100mm
G 10mm
A 20.5mm
A1 20.22mm
A5 9.5mm
B 38.1mm
s 15.93mm
d1 40mm
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1030-30G+insonly">1030-30G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
