SKU: FC3/4-RHP

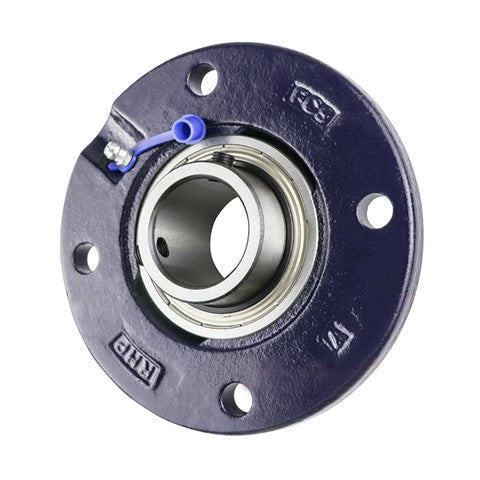

RHP FC3/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 3/4 inch Insert
RHP FC3/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 3/4 inch Insert
Regular price
€47,08
ex VAT
Regular price
Sale price
€47,08
ex VAT
In stock
Price Break
10+
€35,78
20+
€33,77
30+
€33,36
40+
€32,96
50+
€32,56
75+
€32,16
100+
€30,15
200+
€29,75
250+
€29,34
500+
€28,94
1000+
€28,14
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- FC
- Pitch Circle Diameter:
- 78.003mm = 3.071 inch
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 3.937 inch |
| H | 2.441 inch |
| J | 3.071 inch |
| G | 0.3125 inch |
| A | 0.669 inch |
| A1 | 0.641 inch |
| A5 | 0.315 inch |
| B | 1.219 inch |
| s | 0.502 inch |
| d1 | 1.122 inch |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-3/4G+insonly">1020-3/4G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
