SKU: FC25-RHP

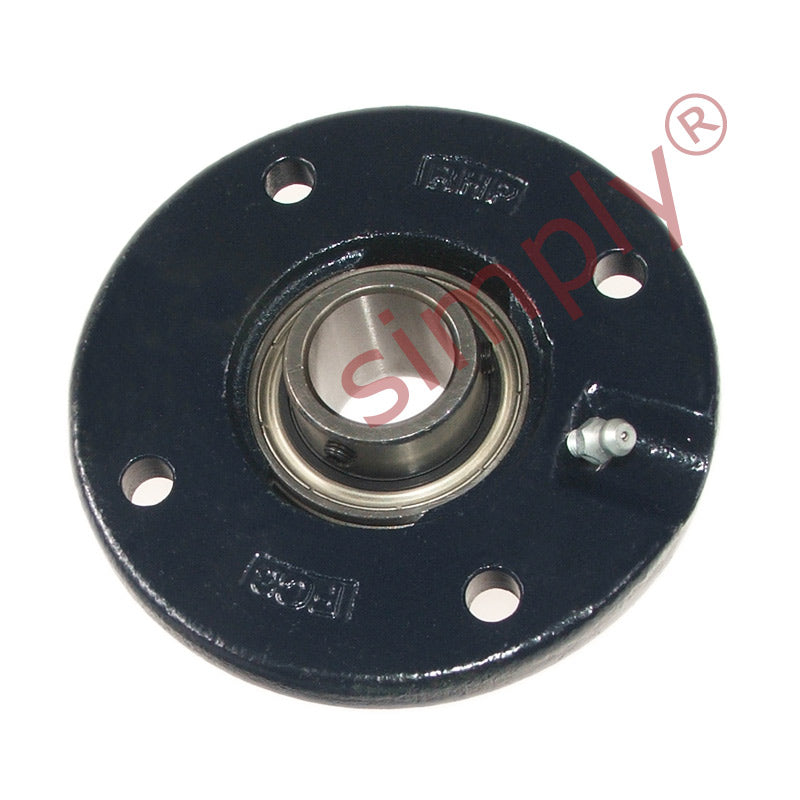

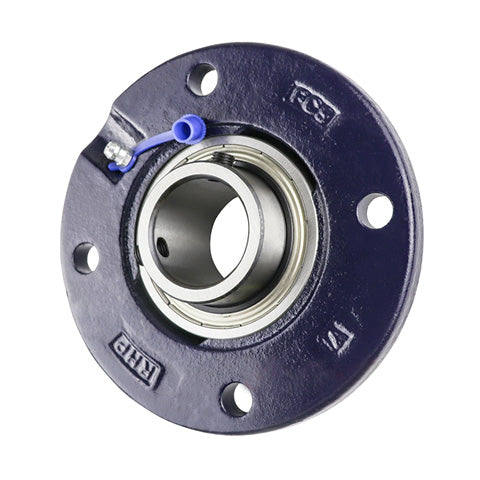

RHP FC25-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
- Regular price
- €52,14 ex VAT
- Sale price
- €52,14
- Regular price
-
Not in stock
Quantity Price Breaks
10
€46,40
20
€43,80
30
€43,28
40
€42,75
50
€42,23
75
€41,71
100
€39,11
200
€38,58
250
€38,06
500
€37,54
1000
€36,50
SKU:
FC25-RHP
RHP FC25-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
- Regular price
- €52,14 ex VAT
- Sale price
- €52,14
- Regular price
-
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |

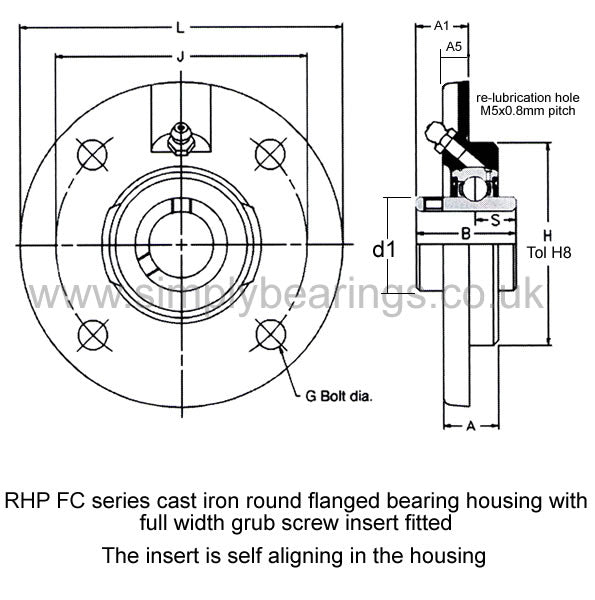

Technical
| Bore | = | 25mm |
| L | = | 115mm |
| H | = | 70mm |
| J | = | 90mm |
| G | = | 8mm |
| A | = | 19mm |
| A1 | = | 17.34mm |
| A5 | = | 9mm |
| B | = | 34.11mm |
| s | = | 14.32mm |
| d1 | = | 34.01mm |
| Dynamic load | = | 14000 N |
| Static load | = | 7880 N |
| Rec max speed | = | 6250 rpm |
| Weight | = | 0.9 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1025-25G+insonly" |
| > | = | 1025-25G Click Here< |
| /a> | = | |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
