SKU: FC20EC-RHP

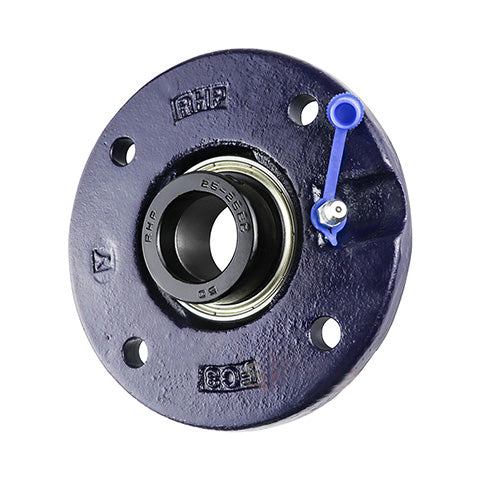

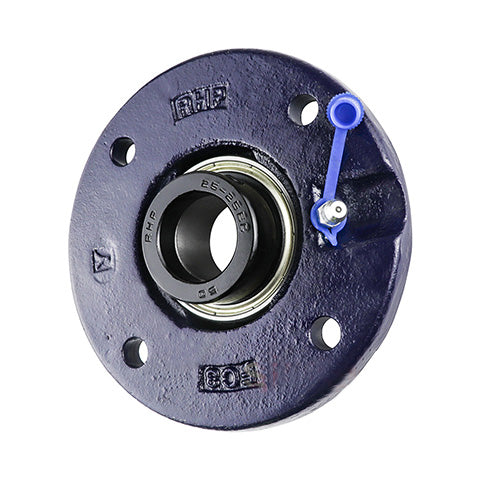

RHP FC20EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
RHP FC20EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
Regular price
€47,41
ex VAT
Regular price
Sale price
€47,41
ex VAT
In stock
Price Break
10+
€36,02
20+
€34,00
30+
€33,60
40+
€33,19
50+
€32,79
75+
€32,38
100+
€30,36
200+
€29,95
250+
€29,55
500+
€29,14
1000+
€28,33
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- FC
- Pitch Circle Diameter:
- 78mm

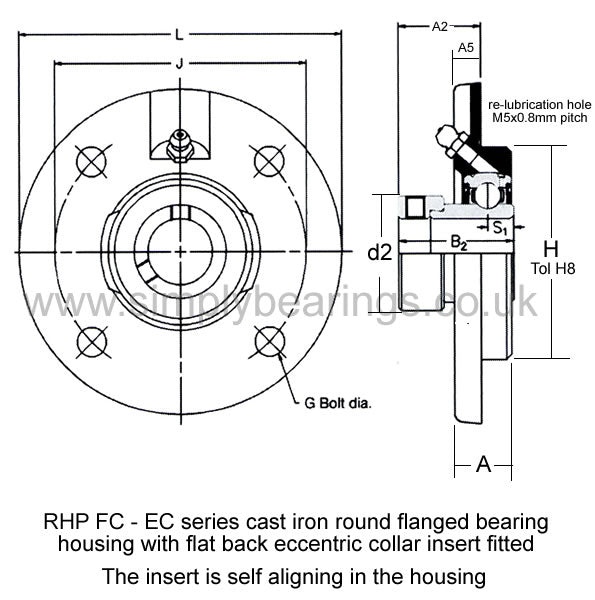

Technical
Technical
| Bore | 20mm |
|---|---|
| L | 100mm |
| H | 62mm |
| J | 78mm |
| G | 8mm |
| A | 17mm |
| A2 | 21.45mm |
| A5 | 8mm |
| B2 | 30.92mm |
| s2 | 17.12mm |
| d2 | 33.3mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-20ECG+insonly">1220-20ECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
