SKU: FC20DEC-RHP

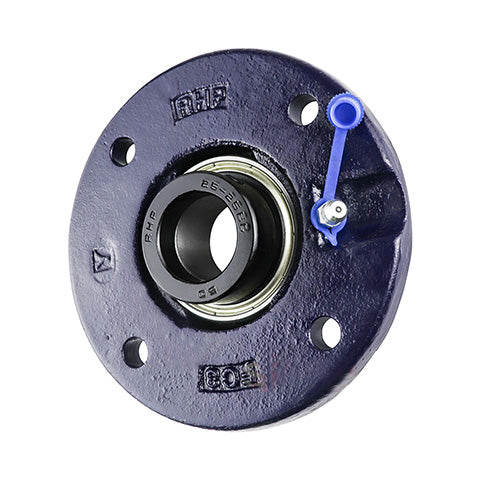

RHP FC20DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
RHP FC20DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
Regular price
€52,75
ex VAT
Regular price
Sale price
€52,75
ex VAT
In stock
Price Break
10+
€40,09
20+
€37,83
30+
€37,38
40+
€36,93
50+
€36,48
75+
€36,03
100+
€33,78
200+
€33,33
250+
€32,88
500+
€32,43
1000+
€31,53
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- FC
- Pitch Circle Diameter:
- 78mm

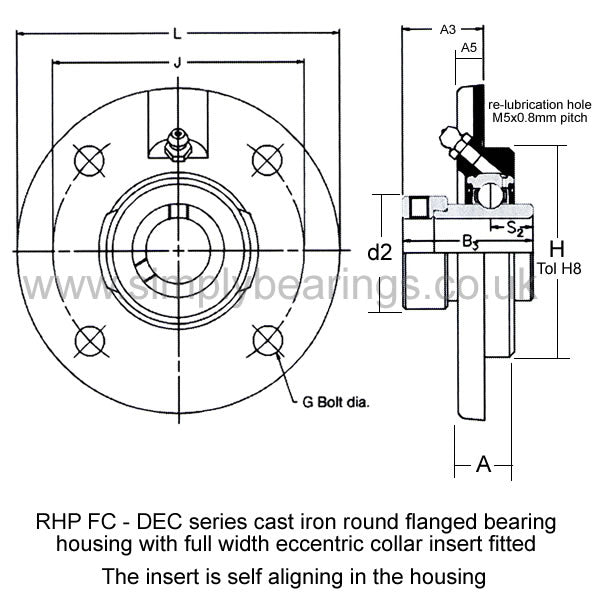

Technical
Technical
| Bore | 20mm |
|---|---|
| L | 100mm |
| H | 62mm |
| J | 78mm |
| G | 8mm |
| A | 17mm |
| A3 | 24.57mm |
| A5 | 8mm |
| B3 | 43.62mm |
| s2 | 17.12mm |
| d2 | 33.3mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-20DECG+insonly">1020-20DECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
